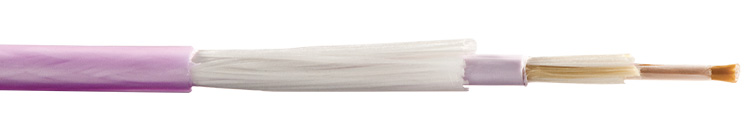

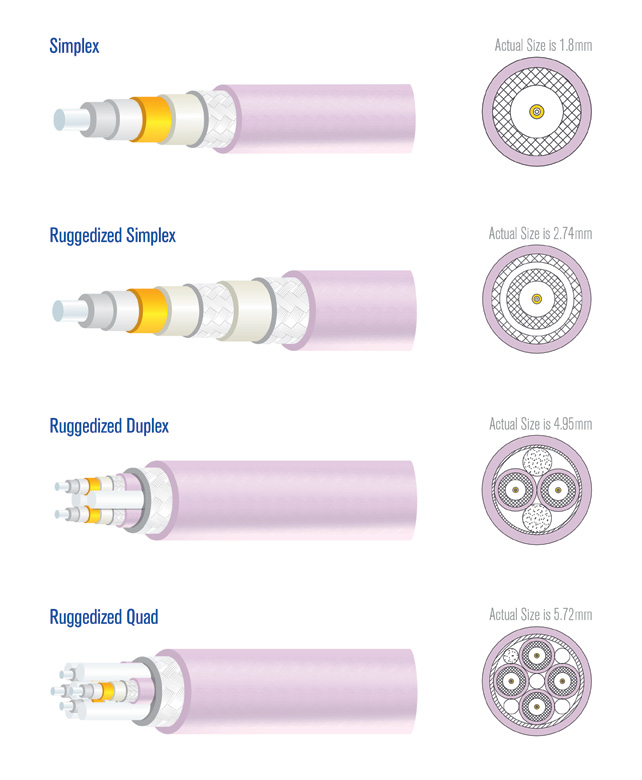

The LITEflight® EP (Enhanced Performance) series of aerospace-grade fiber optic cables provides all the performance and benefits necessary to perform in the harsh environments of your aerospace and military applications but with lower loss, tighter bend radius, improved thermal stability and better handling during termination and installation. Unlike tight structured cables, the LITEflight® EP semi-loose structured cables are compatible with all commercially available fiber optic termini and connectors. LITEflight® EP is available in multiple sizes, configurations and temperature ratings up to 260 °C in order to meet the most demanding application requirements.
Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.
Temperature Rating: | up to 260 °C |
---|---|
Cable Weight: | 4.6 kg/km |
Minimum Bend Radius (installation): | 6.0 mm |
Minimum Bend Radius (operation/shortage): | 9.0 mm |
Attenuation (850mm): | 2.8-2.9 dB/km |
Attenuation (1300mm): | .6-.8 dB/km |
NFO(EP)-125-1 Check Inventory
NFO(EP)-125-1-1 Check Inventory
NFO(EP)-125-2M4 Check Inventory
NFO(EP)-125-5B Check Inventory
LITEflight® EP datasheet
To inquire about LITEflight® EP available from Amphenol CIT, please fill out the form below, and one of our Sales Engineers will contact you.
