Designed for harsh-environment aerospace and industrial applications

  • Strength, flexibility and resistance to harsh chemical environments across a wide operating temperature range

Typical Applications

  • Instrumentation Connections
  • Steering Columns and Doors
  • Joystick Controls
  • Keyboard Cables
  • Down Hole Tools
  • Sensor Cables


  • Coil Outer Diameter: Up to 3.0 in (7.6 cm)
  • Coiled Length: Up to 7 ft (2.1 m)
  • Operating Temperature: -55 to 200°C
  • Jacket Material Options: Polyurethane, Hytrel, TPR, Kynar Flex, Seamless™ PTFE Tape/Polyimide, FEP/Polyimide, Polyolefin
  • Internal Wire Options: Standard Hookup Wire (PTFE, FEP, PFA or ETFE), Composite Wire (Polyimide or PTFE), Coax, Data Cables and Custom Combinations of Power, Coax & Data Components
  • Full Point-to-Point Continuity Testing
  • 100% Dimensional Confirmations per Customer Specifications
  • Flex Life Testing

7 Conductor Coil Cord Two (2) Twisted pairs with three (3) insulated conductors
Cabling Seven conductors twisted together with a 3.0"" nominal left hand lay (LHL) Two shielded twisted pairs and three insulated conductors with one staycord (Polyester)
Conductors 16 AWG 19 X 29
Singles: 26 AWG 19 X 38 stranding tin plated copper
Insulation Polytetrafluoroethylene (PTFE) / Polyimide composite to meet the requirements of M22759/86 Twisted Shielded Pair: Extruded Polypropylene (PP)
Color: Black Color: Brown
Shield NA Twisted Shielded Pair: 38 AWG served tin plated copper 95% coverage
Binder PTFE Binder tape NA
Jacket Seamless PTFE / polyimide tape composite Extruded Polyurethane (PU)
Color: White Color: Black

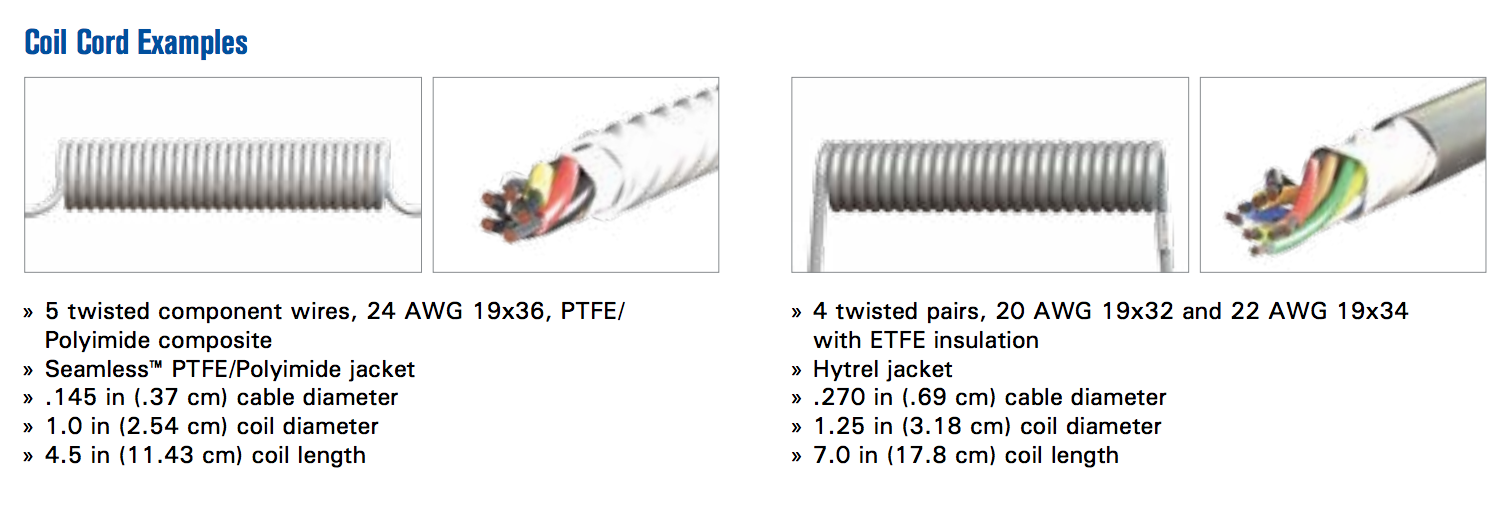

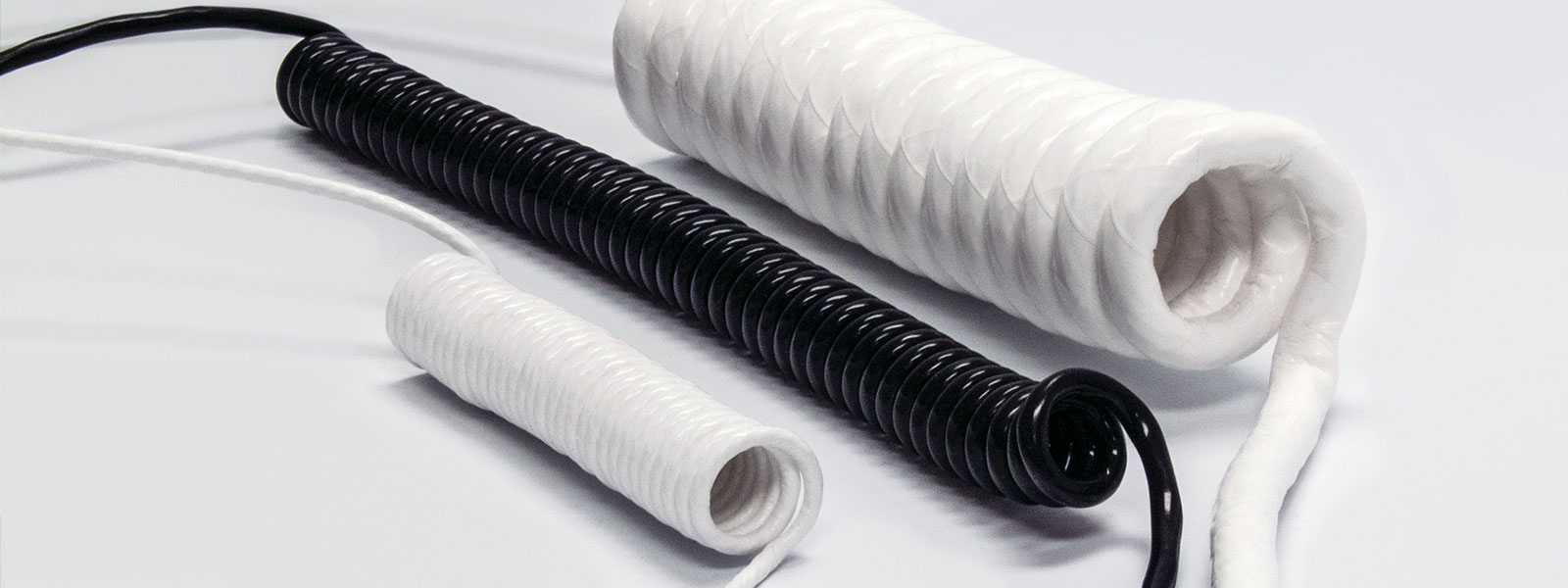

Coil Cord Examples
