HDMI Cables

These compact A/V cables are designed to transmit uncompressed digital streams and support High-Definition Multimedia Interface (HDMI). Our HDMI cables are developed for use onboard aircraft and designed to meet or exceed burn requirement regulations.

Key Features

  • Lightweight and flexible for easy installation
  • Optimum shielding to maintain reliable performance
  • Developed for minimal insertion loss and superior protection against Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI)
  • Meets or exceeds burn/smoke requirements set by Federal Aviation Regulations
  • Ideal for use in radar and weather mapping systems, communications, navigation systems, in-flight entertainment equipment, EFB systems, and all aircraft applications where temperature, noise protection and flexibility are critical concerns

Mechanical/Environmental Performance

P/N 1586-305
Cable Diameter (in.) 0.315
Cable Weight (lbs/1000ft) 72
Impedance (Ohms) 100 ± 10%
Attenuation (dB/100ft)
300 MHz 15
1.6 GHz 36
4.1 GHz 59
Temperature Rating 150°C

Product Construction

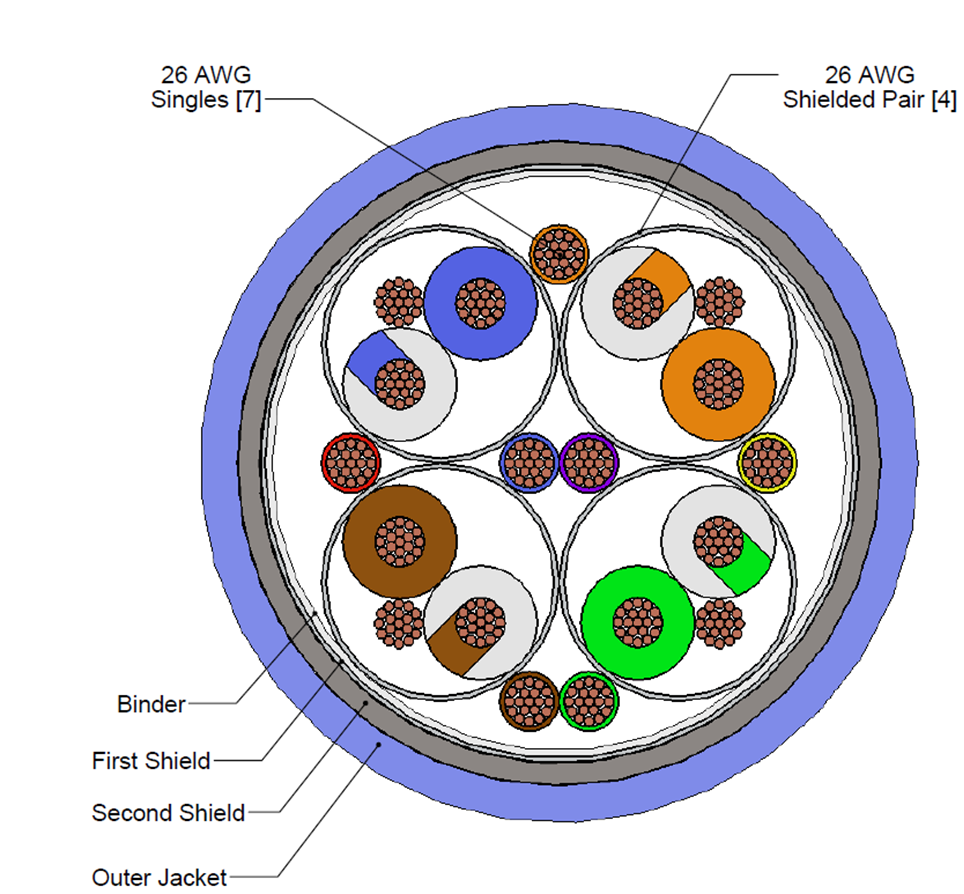

HDMI Construction Drawing

Product Information Resources

High-Speed Digital Data Cables datasheet

HDMI 2.0 Locking Cable Assemblies datasheet
