Seamless and Seamless-T™ M22759 (SAE AS22759) Wires

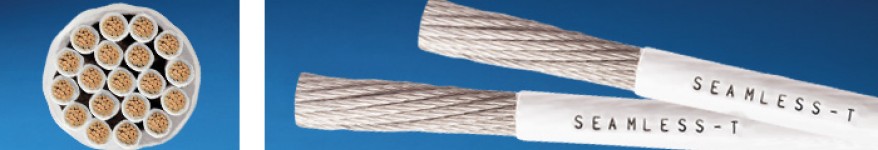

Seamless-T™ M22759
Amphenol CIT's Seamless-T product line meets the enhanced "seamless" insulation and enhanced requirements of AS22759/180-/192, once again raising the bar for outstanding performance.
Key Features
Weight and space savings over extruded insulation
Improved resistance to scrape abrasion
Further improved laser markability
Unmatched hydrolytic and electrical arc track resistance
Exceptional layer-to-layer adhesion
Low outgassing characteristics

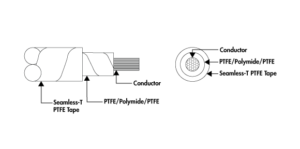

Product Construction
Conductor
Options of stranded tin, silver, nickel plated copper or high strength/ultra high strength alloys
Insulations and jacket
PTFE/polyimide/PTFE and Seamless T PTFE tape
Mechanical/Environmental Performance
Electrical Performance
Voltage
600 V
DC Resistance
1.26 to 41.3 ohms per 1000 ft
Vp
NA
Attenuation
NA
Mechanical Specifications
Weight/K ft
1.3 to 30.4 lbs per 1000 ft
Size
0.034 in to 0.123 in
Min. Bend Radius
NA
Environmental Performance
Operating Temperature
-55 to 150C (Tin)
-55 to 200 C (Silver)
-55 to 260 C (Nickel)
Our Seamless Wrap PTFE wire insulation and cable jacket offers all the advantages of a tape wrap with the smooth appearance and installation characteristics of an extrusion.
Amphenol CIT Seamless-T product line meets the enhanced "seamless" insulation and enhanced requirements of AS22759/180-/192, once again raising the bar for outstanding performance.
To inquire about Seamless and Seamless-T™ M22759 (SAE AS22759) Wires available from Amphenol CIT, please fill out the form below, and one of our Sales Engineers will contact you.
