Octax®-Solo 10 Gbps Ethernet Interconnect System

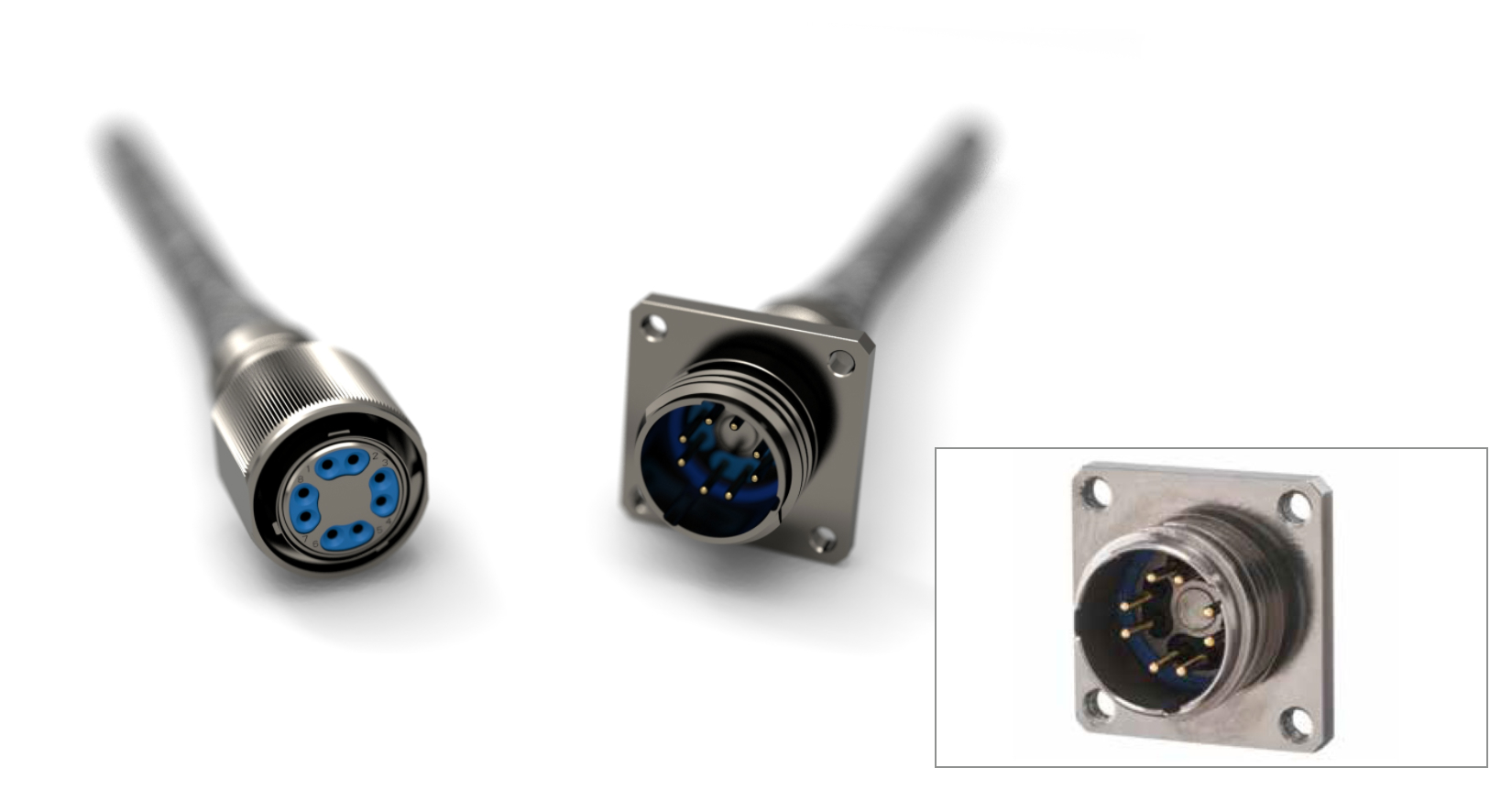

Main: Octax®-Solo plug and flange-mount receptacle connectors. Inset: Octax®-Solo flange-mount straight PC tail receptacle.

Ultra High-Speed Interconnect Solution

The Amphenol CIT's Octax®-Solo 10 Gbps Ethernet Connector is a single-port, standalone connector designed for a wide variety of aerospace and military applications.

The Octax connector:

  • Uses innovative inserts that isolate each twisted pair and contact, virtually eliminating near-end crosstalk

  • Features cable and twists that are maintained extremely close to the contacts, minimizing characteristic impedance mismatch

  • Delivers 10x the transmission speed (10 Gbps signal) and 2x the density compared to Quadrax-type solutions

Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.

Features & Benefits

Feature Benefit
Gigabit and 10 Gb Ethernet data transfer speed Allows for higher data quantities to transfer at quicker speeds covering a variety of 1 Gb
applications and emerging 10 Gb needs
Field repairable Designed for easier and less costly on-site termination repair
Uses standard 22D crimp contacts (M39029) Standard off-the-shelf contacts are readily available and requires no special tooling
Small form factor Critical space savings for highly dense applications
Anti-decoupling/self-locking mechanism for
rugged environments
Connector will not disconnect/uncouple in a high-vibration application

Suggested Applications

  • Single-Port 10 Gbps Ethernet connector (compatible with Amphenol CIT Gigabit Series Ethernet Cables)
    • Aerospace and military
    • Avionics
    • IFEC
    • High definition video displays
    • Data loading
  • Any high-speed Ethernet application


Test Results

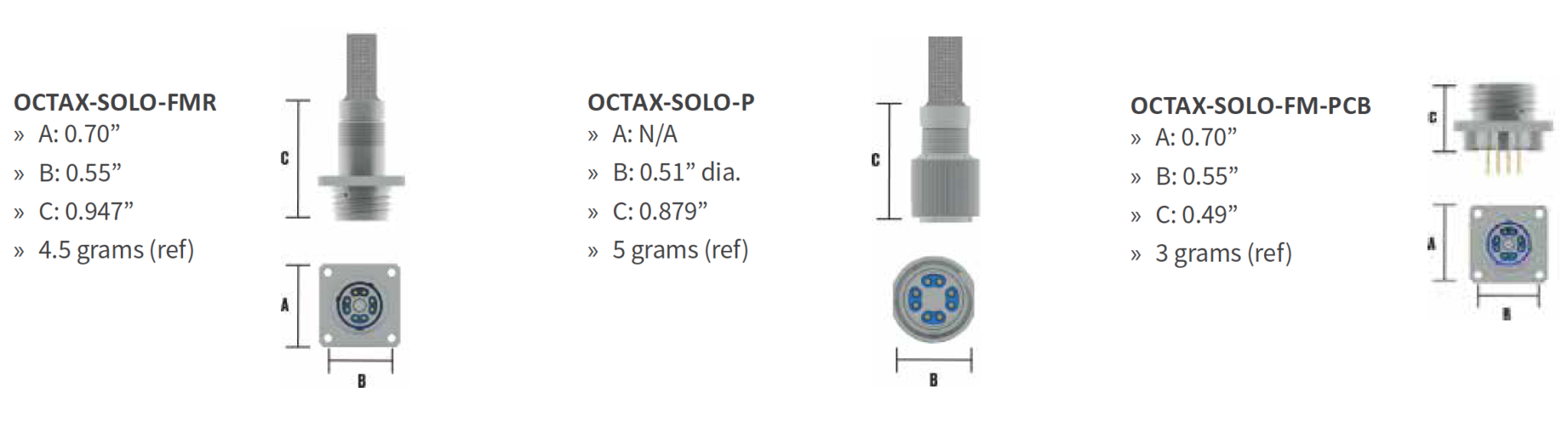

Parts Table

Part Number Description Finish
OCTAX-SOLO-FMR Flange mount receptacle connector Ni PTFE
OCTAX-SOLO-JNR Jam nut receptacle connector Ni PTFE
OCTAX-SOLO-IR Inline (flange-less)  receptacle connector Ni PTFE
OCTAX-SOLO-P Plug connector Ni PTFE
OCTAX-SOLO-FM-PCB* Straight PCB flange mount receptacle connector Ni PTFE
OCTAX-SOLO-FMR-W Flange mount receptacle connector CADMIUM OD
OCTAX-SOLO-JNR-W Jam nut receptacle connector CADMIUM OD
OCTAX-SOLO-IR-W Inline (flange-less)  receptacle connector CADMIUM OD

*Jam nut design also available


Product Information Resources

Octax®-Solo product information sheet

Product Categories

Connectors & Accessories

Product Markets

Commercial Aerospace

More Information

To inquire about Octax®-Solo 10 Gbps Ethernet Interconnect System available from Amphenol CIT, please fill out the form below, and one of our Sales Engineers will contact you.

"*" indicates required fields


Need Low Volume Quantities?

Order through Amphenol CIT Direct!

Order now!

Test Scope Per Specification Notes
Operating Temperature Range -65 °C to 175 °C
Altitude Immersion EIA-364-03 70,000 ft., 500 VRMS
Fungus MIL-STD-810 By Similarity
Contamination by Fluids MIL-STD-810 By Similarity
Sand and Dust MIL-STD-810 By Similarity
Corrosion Resistance EIA-364-26, Condition A 100 hrs
Vibration - Random EIA-364-28, Condition V, Letter "J"
Durability MIL-DTL-38999 500 Mate/Unmate Cycles
Mating Cycles EIA-364-28, Condition V, Letter "J"
Coupling Torque EIA-364-8310 mV drop
Contact Retaining Force EIA-364-29, Method B6 lbs max, .012" Displacement
Dielectric Withstand Voltage EIA-364-20 500VRMS, 60Hz
Data Rate 10 Gbps
