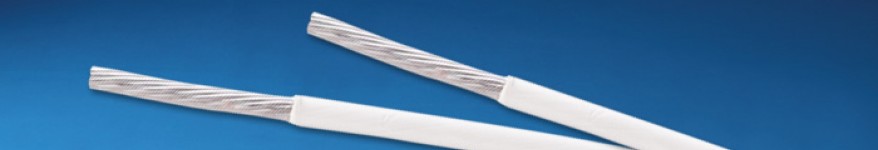

Seamless M22759/80-/92 (SAE AS22759/80-/92) Wire


Our Seamless Wrap PTFE wire insulation and cable jacket offers all the advantages of a tape wrap with the smooth appearance and installation characteristics of an extrusion.


Key Features

  • Weight and space savings over extruded insulation
  • Exceptional resistance to scrape abrasion
  • Exceptional laser markability
  • Exceptional hydrolytic resistance
  • Exceptional electrical arc scrape abrasion track resistance
  • Exceptional layer-to-layer adhesion
  • Exceptional low outgassing characteristics

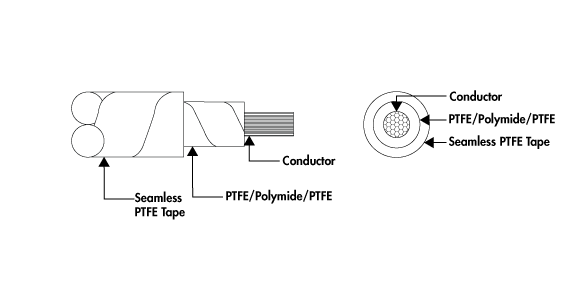

Product Construction

Conductor Stranded nickel
Insulations and jacket PTFE/polyimide/PTFE and Seamless PTFE tape

Mechanical/Environmental Performance

Electrical Performance:
Voltage 600 V
DC Resistance 1.26 to 41.3 ohms per 1000 ft
Vp NA
Attenuation NA
Mechanical Specifications:
Weight/K ft 1.3 to 30.4 lbs per 1000 ft
Size 0.034 in to 0.123 in
Min. Bend Radius NA
Environmental Performance:
Operating Temperature -55 to 150C (Tin)
-55 to 200 C (Silver)
-55 to 260 C (Nickel)

Product Categories

Wire & Cable

Product Markets

Commercial Aerospace
Military-Defense
