Tufflite® Thick Wall - TLS

An increased wall version which can be utilized in applications requiring superior mechanical capabilities such as abrasion resistance and dynamic cut-through. This insulation system may be used as a reduced size and weight replacement for MIL-W-22759/5 to /8. TLS is rated at 260°C.

Key Features

  • Excellent Temperature Performance
  • Superior Flammability and Smoke Generation Properties
  • Excellent Resistance Arc Propagation
  • Light Weight & Small Diameter
  • Best Balance of Properties

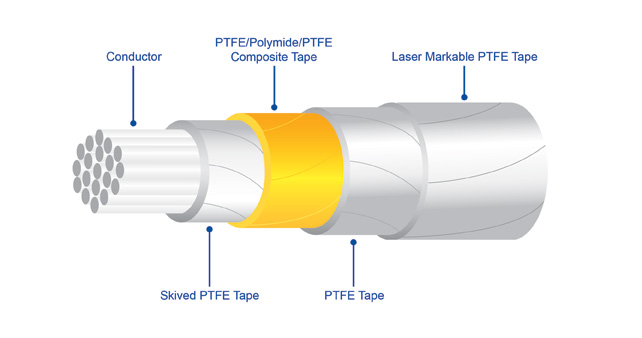

Product Construction

Mechanical/Environmental Performance

Voltage Rating 600V
Temperature Rating 260C
Conductor Material Copper/Copper Alloy
Conductor Coating Nickel
AWG 24-4/0


Product Categories

Wire & Cable

Product Markets

Commercial Aerospace

More Information

To inquire about Tufflite® Thick Wall - TLS available from Amphenol CIT, please fill out the form below, and one of our Sales Engineers will contact you.
