3/8 ATR Tray

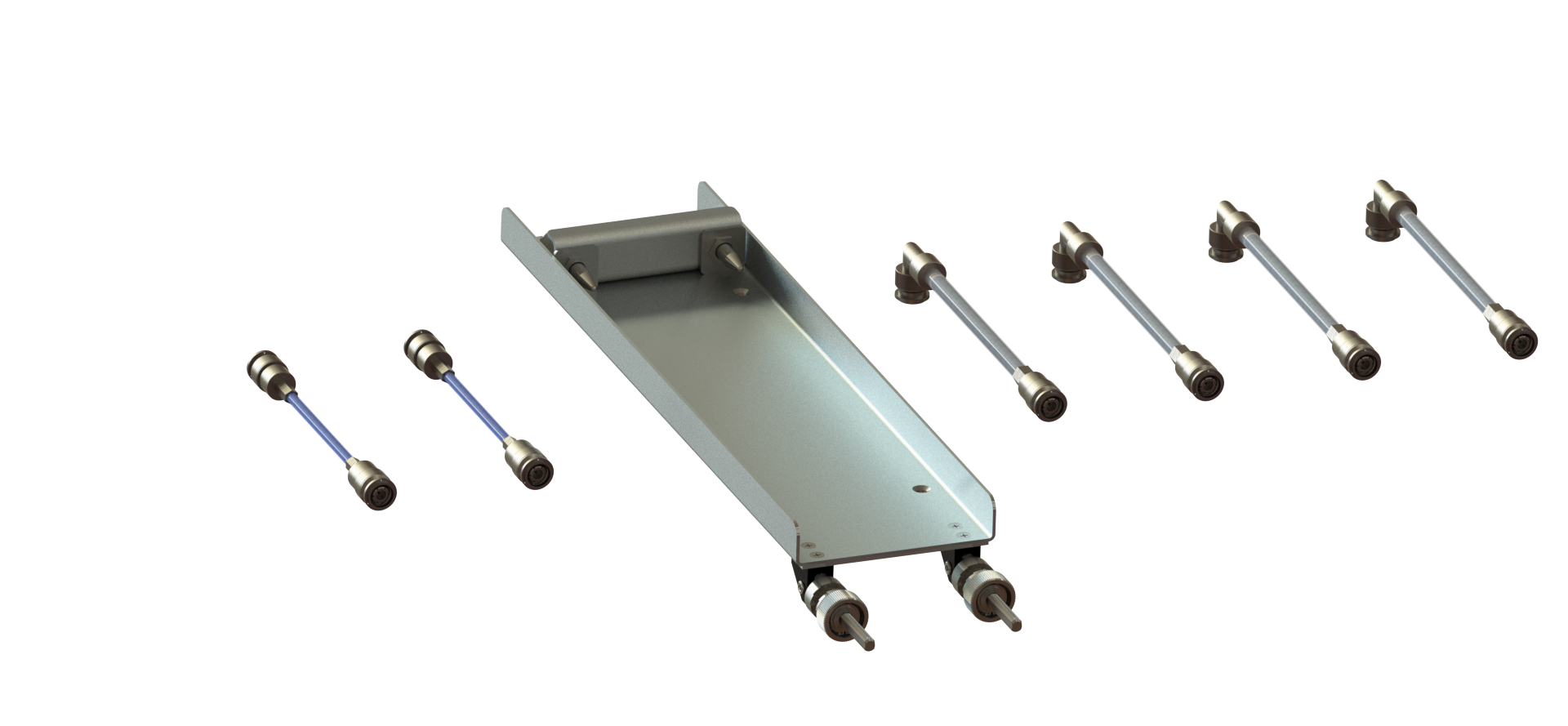

Amphenol CIT is pleased to offer turnkey integration kits for the SmartSky 4G LTE ATG system. These kits are ideal for all installations where customized engineering is expensive and unnecessary.
Coax kits are engineered to custom cabling lengths and connectors to match your installation needs. The ABR tray is engineered per ARINC 404A, 3/8 ATR specification. Amphenol CIT’s engineering team is available to answer questions and provide guidance on selecting the perfect combination of components for your specific application.
| Features | Customer Benefit |
|---|---|
| Coax Cable Kits | Custom lengths Fully and Partially terminated coaxial cable assemblies Standard and Waterproof options |
| 3/8 ATR Tray | Designed and qualified per ABR & A404A specifications |
The tray is designed per the ARINC 404A, 3/8 ATR specifications; equipped with rear guide pins and front hold-downs to properly secure the ABR LRU. Additional custom options are available upon request. Contact Amphenol CIT engineering to confirm the right tray for your application.

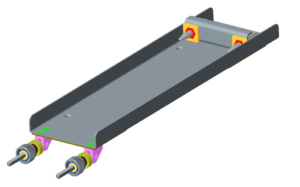

3/8 ATR Tray P/N: 200-106007-101
Standard coaxial cable kits are engineered to specify your required length and optimized for loss and attenuation dependent upon your installation length. Various cable types and connector variations (Straight or Right Angle) are available to optimize your installation needs. The kits are designed for both fully terminated and partially terminated options. Just plug and play!
Please refer to the configurator worksheet below and linked drawing to generate your Coax P/N. TNC coax connectors are automatically chosen based on Cable Type and Connector Configuration.

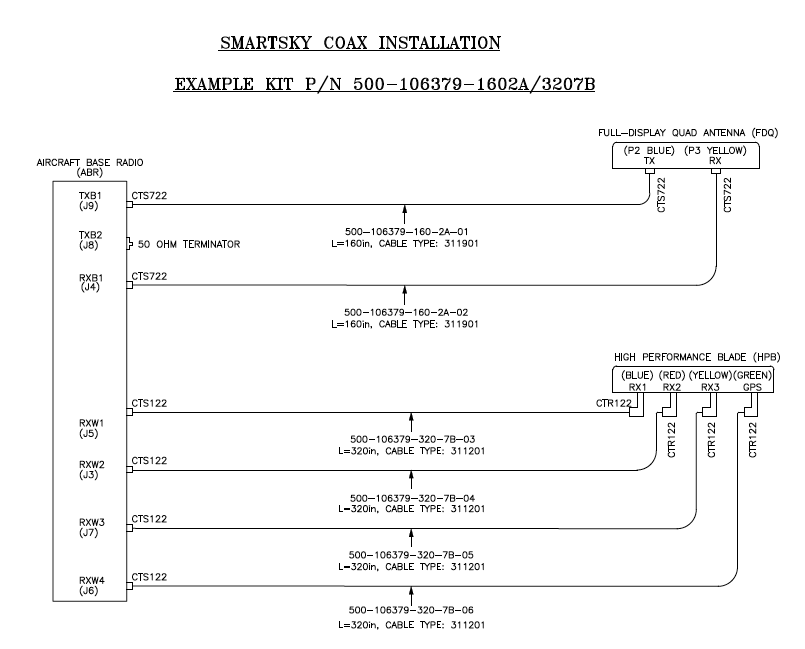

Example Configuration P/N: 500-106379-1602A/3207B
In addition to our Standard coaxial cable kits, Amphenol CIT is pleased to offer a Waterproof coaxial cable kit option. The Waterproof kits include our standard 311201 50 Ohm cable, along with our CTSW122 TNC connectors.
Please refer to the configurator worksheet below and linked drawing to generate your Coax P/N.

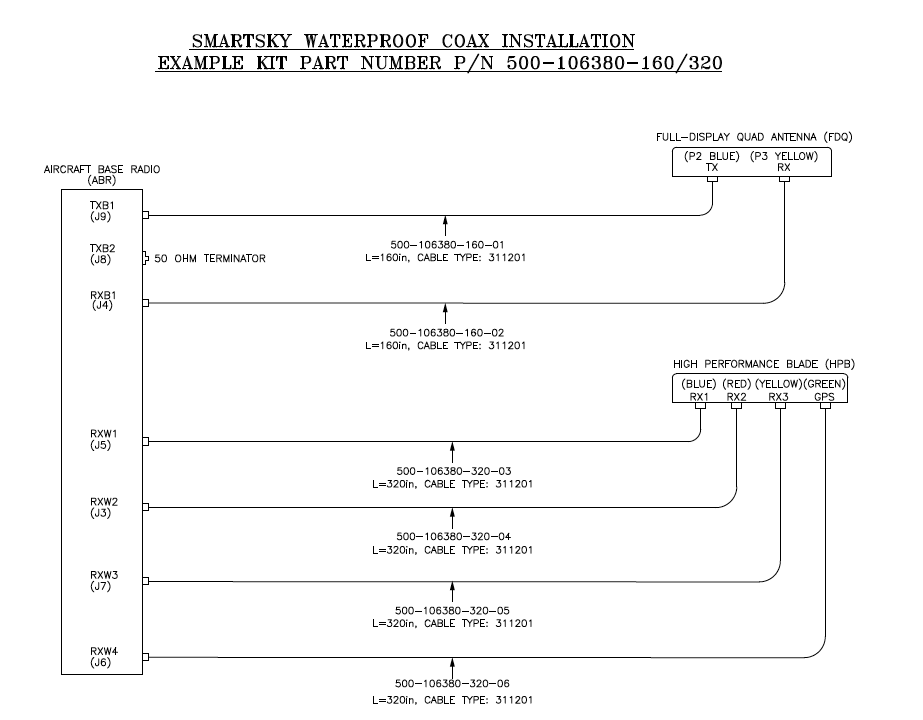

Example Configuration P/N: 500-106380-160/320
Tray
Drawing 900-106008
Standard Coax Kit
Drawing 500-106379
Standard Coax Configurator Worksheet
Standard Coax Example Configuration
Waterproof Coax Kit
Drawing 500-106380
Waterproof Coax Configurator Worksheet
Waterproof Coax Example Configuration
To inquire about SmartSky 4G LTE ATG™ available from Amphenol CIT, please fill out the form below, and one of our Sales Engineers will contact you.
