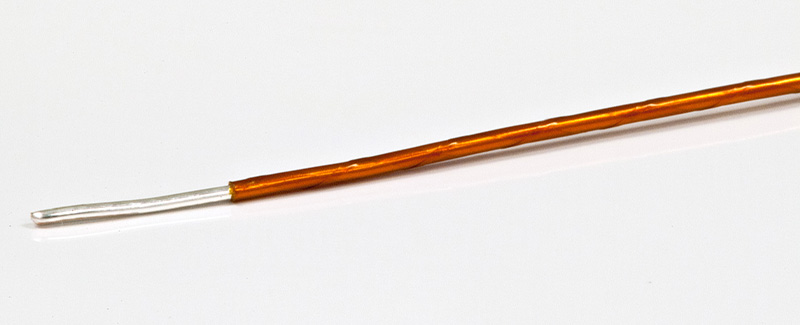

Polyimide Equipment Wire & Cable

Polyimide cables are a compact, lightweight and mechanically tough polymer with good flexibility, heat and chemical resistance. Typical applications include airframe and aircraft wiring, military communications and avionics, automotive wiring, and nuclear power installations.

Key Features

A range of Polyimide Equipment wires, designed and manufactured for high temperature, high voltage and light weight, small diameter applications.

Operating temperature - 75°C to + 200°C
250V to 1000V rating
Available with Silver-plated or Tin-plated conductors
Range of 11 standard colors and striped color options for ease of identification
Compact and lightweight for space and weight saving
Low smoke and low toxicity properties
Excellent radiation resistance

Nominal Conductor OD					TYPE 1 (250 V Unshielded)
AWG	mm	mm²	Stranding	Insulation (mm)	Overall Diam. (mm)
AWG	mm	mm²	Stranding	Insulation (mm)	Min.	Max.
11	0.2	0.031	1/0.200	0.06	0.29	0.35
30	0.25	0.049	1/0.250	0.06	0.34	0.40
28	0.32	0.080	1/0.320	0.06	0.41	0.47
26	0.40	0.126	1/0.400	0.06	0.49	0.55
22	0.60	0.283	1/0.600	0.06	0.69	0.75
19	0.90	0.636	1/0.900	0.06	0.99	1.05
32	0.24	0.035	7/0.080	0.06	0.33	0.39
30	0.30	0.055	7/0.100	0.06	0.39	0.45
28	0.36	0.079	7/0.120	0.06	0.45	0.51
26	0.45	0.124	7/0.150	0.06	0.56	0.62
24	0.60	0.220	7/0.200	0.06	0.69	0.75
26	0.50	0.149	19/0.100	0.06	0.57	0.67
22	0.75	0.336	19/0.150	0.06	0.82	0.92
20	1.00	0.597	19/0.200	0.06	1.07	1.17

Nominal Conductor OD					TYPE 1S (250 V Shielded)
AWG	mm	mm²	Stranding	Insulation (mm)	Overall Diam. (mm)
AWG	mm	mm²	Stranding	Insulation (mm)	Min.	Max.
11	0.2	0.031	1/0.200	0.06	*	*
30	0.25	0.049	1/0.250	0.06	*	*
28	0.32	0.080	1/0.320	0.06	*	*
26	0.40	0.126	1/0.400	0.06	0.84	0.99
22	0.60	0.283	1/0.600	0.06	1.04	1.19
19	0.90	0.636	1/0.900	0.06	1.34	1.49
32	0.24	0.035	7/0.080	0.06	0.68	0.83
30	0.30	0.055	7/0.100	0.06	0.74	0.89
28	0.36	0.079	7/0.120	0.06	0.80	0.95
26	0.45	0.124	7/0.150	0.06	0.91	1.06
24	0.60	0.220	7/0.200	0.06	1.04	1.19
26	0.50	0.149	19/0.100	0.06	0.92	1.12
22	0.75	0.336	19/0.150	0.06	1.17	1.37
20	1.00	0.597	19/0.200	0.06	1.42	1.62

Nominal Conductor OD					TYPE 1SM (250 V Shielded & Jacketed)
AWG	mm	mm²	Stranding	Insulation (mm)	Overall Diam. (mm)
AWG	mm	mm²	Stranding	Insulation (mm)	Min.	Max.
11	0.2	0.031	1/0.200	0.06	*	*
30	0.25	0.049	1/0.250	0.06	*	*
28	0.32	0.080	1/0.320	0.06	*	*
26	0.40	0.126	1/0.400	0.06	1.02	1.22
22	0.60	0.283	1/0.600	0.06	1.22	1.42
19	0.90	0.636	1/0.900	0.06	1.52	1.72
32	0.24	0.035	7/0.080	0.06	0.86	1.06
30	0.30	0.055	7/0.100	0.06	0.92	1.12
28	0.36	0.079	7/0.120	0.06	0.98	1.18
26	0.45	0.124	7/0.150	0.06	1.09	1.29
24	0.60	0.220	7/0.200	0.06	1.22	1.42
26	0.50	0.149	19/0.100	0.06	1.15	1.35
22	0.75	0.336	19/0.150	0.06	1.40	1.60
20	1.00	0.597	19/0.200	0.06	1.65	1.85

Nominal Conductor OD					TYPE 2 (600 V Unshielded)
AWG	mm	mm²	Stranding	Insulation (mm)	Overall Diam. (mm)
AWG	mm	mm²	Stranding	Insulation (mm)	Min.	Max.
32	0.20	0.031	1/0.200	0.12	0.38	0.50
30	0.25	0.049	1/0.250	0.12	0.43	0.55
28	0.32	0.080	1/0.320	0.12	0.50	0.62
26	0.40	0.126	1/0.400	0.12	0.58	0.70
22	0.60	0.283	1/0.600	0.12	0.78	0.90
19	0.90	0.636	1/0.900	0.12	1.08	1.20
32	0.24	0.035	7/0.080	0.12	0.42	0.54
30	0.30	0.055	7/0.100	0.12	0.48	0.60
28	0.36	0.079	7/0.120	0.12	0.54	0.66
26	0.45	0.124	7/0.150	0.12	0.63	0.75
24	0.60	0.220	7/0.200	0.12	0.78	0.90
26	0.50	0.149	19/0.100	0.12	0.68	0.80
22	0.75	0.336	19/0.150	0.12	0.93	1.05
20	1.00	0.597	19/0.200	0.12	1.18	1.30
18	1.25	0.933	19/0.250	0.12	1.43	1.55
16	1.50	1.343	19/0.300	0.12	1.68	1.80
14	1.68	1.675	19/0.335	0.12	1.86	1.98
12	2.25	3.022	19/0.450	0.12	2.43	2.55
10	2.80	4.650	37/0.400	0.12	2.98	3.10

Nominal Conductor OD					TYPE 2SM (600 V Shielded & Jacketed)
AWG	mm	mm²	Stranding	Insulation (mm)	Overall Diam. (mm)
AWG	mm	mm²	Stranding	Insulation (mm)	Min.	Max.
32	0.20	0.031	1/0.200	0.12	*	*
30	0.25	0.049	1/0.250	0.12	0.97	1.09
28	0.32	0.080	1/0.320	0.12	1.04	1.16
26	0.40	0.126	1/0.400	0.12	1.21	1.33
22	0.60	0.283	1/0.600	0.12	1.41	1.53
19	0.90	0.636	1/0.900	0.12	1.71	1.83
32	0.24	0.035	7/0.080	0.12	1.05	1.17
30	0.30	0.055	7/0.100	0.12	1.11	1.23
28	0.36	0.079	7/0.120	0.12	1.17	1.29
26	0.45	0.124	7/0.150	0.12	1.26	1.38
24	0.60	0.220	7/0.200	0.12	1.41	1.53
26	0.50	0.149	19/0.100	0.12	1.31	1.43
22	0.75	0.336	19/0.150	0.12	1.56	1.68
20	1.00	0.597	19/0.200	0.12	1.81	1.93
18	1.25	0.933	19/0.250	0.12	2.06	2.18
16	1.50	1.343	19/0.300	0.12	2.31	2.43
14	1.68	1.675	19/0.335	0.12	2.49	2.61
12	2.25	3.022	19/0.450	0.12	3.06	3.18
10	2.80	4.650	37/0.400	0.12	3.61	3.73

Nominal Conductor OD					TYPE 2SS (600 V Shielded)
AWG	mm	mm²	Stranding	Insulation (mm)	Overall Diam. (mm)
AWG	mm	mm²	Stranding	Insulation (mm)	Min.	Max.
32	0.20	0.031	1/0.200	0.12	*	*
30	0.25	0.049	1/0.250	0.12	0.79	0.91
28	0.32	0.080	1/0.320	0.12	0.86	0.98
26	0.40	0.126	1/0.400	0.12	1.03	1.15
22	0.60	0.283	1/0.600	0.12	1.23	1.35
19	0.90	0.636	1/0.900	0.12	1.53	1.65
32	0.24	0.035	7/0.080	0.12	0.87	0.99
30	0.30	0.055	7/0.100	0.12	0.93	1.05
28	0.36	0.079	7/0.120	0.12	0.99	1.11
26	0.45	0.124	7/0.150	0.12	1.08	1.20
24	0.60	0.220	7/0.200	0.12	1.23	1.35
26	0.50	0.149	19/0.100	0.12	1.13	1.25
22	0.75	0.336	19/0.150	0.12	1.38	1.50
20	1.00	0.597	19/0.200	0.12	1.63	1.75
18	1.25	0.933	19/0.250	0.12	1.88	2.00
16	1.50	1.343	19/0.300	0.12	2.13	2.25
14	1.68	1.675	19/0.335	0.12	2.31	2.43
12	2.25	3.022	19/0.450	0.12	2.88	3.00
10	2.80	4.650	37/0.400	0.12	3.43	3.55

Nominal Conductor OD					TYPE 3 (1000 V Unshielded)
AWG	mm	mm²	Stranding	Insulation (mm)	Overall Diam. (mm)
AWG	mm	mm²	Stranding	Insulation (mm)	Min.	Max.
30	0.25	0.049	1/0.250	0.18	0.52	0.70
28	0.32	0.080	1/0.320	0.18	0.59	0.77
26	0.40	1.126	1/0.400	0.18	0.67	0.85
22	0.60	0.283	1/0.600	0.18	0.87	1.05
19	0.90	0.636	1/0.900	0.18	1.17	1.35
32	0.24	0.035	7/0.080	0.18	0.51	0.69
30	0.30	0.055	7/0.100	0.18	0.57	0.75
28	0.36	0.079	7/0.120	0.18	0.63	0.81
26	0.45	0.124	7/0.150	0.18	0.72	0.90
24	0.60	0.220	7/0.200	0.18	0.87	1.05
26	0.50	0.149	19/0.100	0.18	0.77	0.95
22	0.75	0.336	19/0.150	0.18	1.02	1.20
20	1.00	0.597	19/0.200	0.18	1.27	1.45
18	1.25	0.933	19/0.250	0.18	1.52	1.70
16	1.50	1.343	19/0.300	0.18	1.77	1.95
14	1.68	1.675	19/0.335	0.18	1.95	2.13
12	2.25	3.022	19/0.450	0.18	2.52	2.70
10	2.80	4.650	37/0.400	0.18	30.7	3.25

Nominal Conductor OD					TYPE 3S (1000 V Shielded)
AWG	mm	mm²	Stranding	Insulation (mm)	Overall Diam. (mm)
AWG	mm	mm²	Stranding	Insulation (mm)	Min.	Max.
30	0.25	0.049	1/0.250	0.18	0.97	0.91
28	0.32	0.080	1/0.320	0.18	1.04	0.98
26	0.40	1.126	1/0.400	0.18	1.12	1.26
22	0.60	0.283	1/0.600	0.18	1.32	1.46
19	0.90	0.636	1/0.900	0.18	1.62	1.76
32	0.24	0.035	7/0.080	0.18	0.96	1.10
30	0.30	0.055	7/0.100	0.18	1.02	1.16
28	0.36	0.079	7/0.120	0.18	1.08	1.22
26	0.45	0.124	7/0.150	0.18	1.17	1.31
24	0.60	0.220	7/0.200	0.18	1.32	1.46
26	0.50	0.149	19/0.100	0.18	1.22	1.36
22	0.75	0.336	19/0.150	0.18	1.47	1.61
20	1.00	0.597	19/0.200	0.18	1.72	1.86
18	1.25	0.933	19/0.250	0.18	1.97	2.15
16	1.50	1.343	19/0.300	0.18	2.22	2.40
14	1.68	1.675	19/0.335	0.18	2.40	2.58
12	2.25	3.022	19/0.450	0.18	2.97	3.15
10	2.80	4.650	37/0.400	0.18	3.52	3.70

Nominal Conductor OD					TYPE 3SM (1000 V Shielded & Jacketed)
AWG	mm	mm²	Stranding	Insulation (mm)	Overall Diam. (mm)
AWG	mm	mm²	Stranding	Insulation (mm)	Min.	Max.
30	0.25	0.049	1/0.250	0.18	1.15	1.09
28	0.32	0.080	1/0.320	0.18	1.22	1.16
26	0.40	1.126	1/0.400	0.18	1.30	1.44
22	0.60	0.283	1/0.600	0.18	1.50	1.64
19	0.90	0.636	1/0.900	0.18	1.80	1.94
32	0.24	0.035	7/0.080	0.18	1.14	1.28
30	0.30	0.055	7/0.100	0.18	1.20	1.34
28	0.36	0.079	7/0.120	0.18	1.26	1.40
26	0.45	0.124	7/0.150	0.18	1.35	1.49
24	0.60	0.220	7/0.200	0.18	1.50	1.64
26	0.50	0.149	19/0.100	0.18	1.40	1.54
22	0.75	0.336	19/0.150	0.18	1.65	1.79
20	1.00	0.597	19/0.200	0.18	1.90	2.04
18	1.25	0.933	19/0.250	0.18	2.15	2.33
16	1.50	1.343	19/0.300	0.18	2.40	2.58
14	1.68	1.675	19/0.335	0.18	2.58	2.76
12	2.25	3.022	19/0.450	0.18	3.15	3.33
10	2.80	4.650	37/0.400	0.18	3.70	3.88
