LITEflight® HD

LITEflight® HD

Key Features

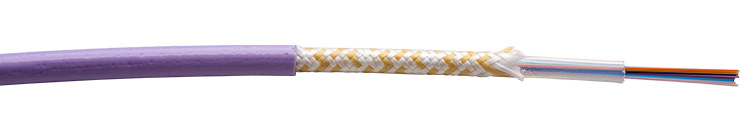

LITEflight® HD (High Density) Fiber Optic Cables build on the industry-leading performance of all Amphenol CIT fiber cable products. With a cable designed for compatibility and cutting-edge fiber optic connector designs, LITEflight HD Cables offer a multi-channel fiber cable in the smallest package, compatible with industry leading MPO connector interfaces and emerging multi-fiber termination connectors. LITEflight HD cables offer system designers maximum interconnect density with cable designed and tested to perform in the harshest environments.

  • Performance in temperature extremes with products available to operate in environments from -65°C to 150°C
  • Lowest susceptibility to thermally induced signal loss
  • Minimal bend sensitivity
  • Extreme shock and vibration resistance
  • Extended flexibility and flexure endurance
  • Tight kink resistance and tolerance
  • High tensile strength
  • Maximum abrasion resistance
  • Ultimate resistance to corrosive fluids and gases
  • Low smoke & toxicity and flame resistance exceeding FAR 25 Appendix F for aircraft installations
  • No preferential bend axis (360°)
  • Compatible with MPO style contacts and connectors

Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.

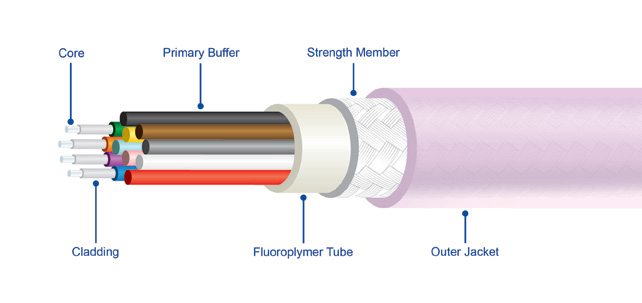

Product Construction


Temperature Rating -65 °C to 125 °C
Cable Weight 19±2 kg/km
Minimum Bend Radius (Installation) 12 mm
Minimum Bend Radius (Operation/Shortage) 20 mm
Attenuation (850 mm) 2.7-3.0 dB/km
Attenuation (1300 mm) 0.8-1.0 dB/km

NFO(HD)-125-3M3-12Check Inventory
NFO(HD)-125-3M4-12Check Inventory

Product Information Resources

LITEflight® HD Datasheet

Product Categories

Wire & Cable

Product Markets

Commercial Aerospace
Medical Technologies

More Information

To inquire about LITEflight® HD available from Amphenol CIT, please fill out the form below, and one of our Sales Engineers will contact you.

"*" indicates required fields


Need Low Volume Quantities?

Order through Amphenol CIT Direct!

Order now!
