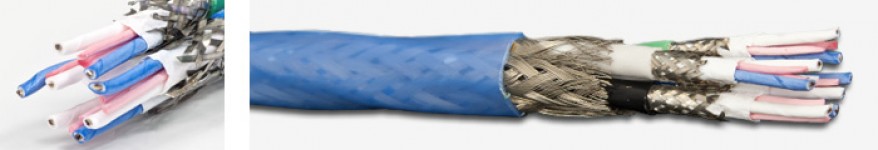

DVI Cable

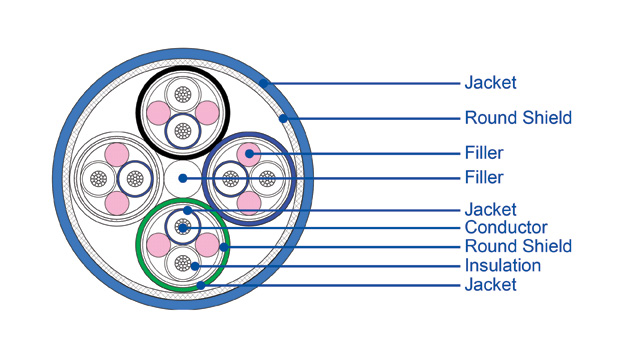

DVI Cable Cutaway

  • High speed transmission
  • Flight-proven design
  • Low smoke and flame generation
  • Custom designs available


P/N 24463/05099X-8(LD)
Typical Protocol Modified DVI-D
AWG Size (19-strand) 24
Conductor Material SCCA
Conductor Diameter (in.) 0.0233
Insulation Material PTFE
Insulation Diameter (in.) 0.055

Product Information Resources

High-Speed Digital Data Cables datasheet

Product Categories

Wire & Cable

Product Markets

Commercial Aerospace

More Information

To inquire about DVI Cable available from Amphenol CIT, please fill out the form below, and one of our Sales Engineers will contact you.
