SATCOM Kits

Cobham AVIATOR SP

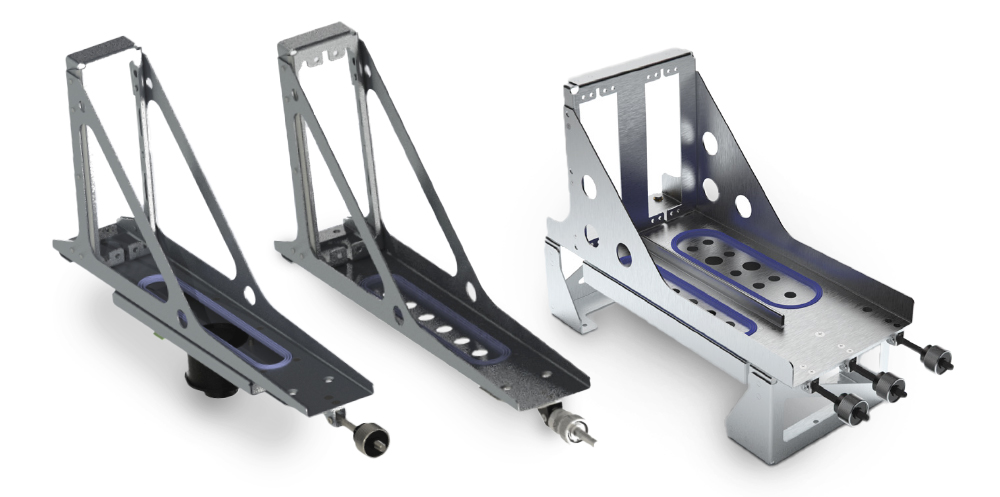

Pictured Left to Right: 2 MCU with Bottom DC Fan (P/N: 200-106639-101); 2 MCU with No Fan (P/N: 6L02S2C1C20); Dual 2/3 MCU with Bottom DC Fan & Rails (P/N: 200-106027-102)


Amphenol CIT is pleased to offer turnkey integration kits for the Cobham AVIATOR SP system. These kits are ideal for all installations where customized engineering is expensive and unnecessary.

Coax and Harness Kits are engineered to custom cabling lengths and include connectors to match your installation needs. The trays are manufactured per the Cobham specification. Amphenol CIT’s engineering team is available to answer questions and provide guidance on selecting the perfect combination of components for your specific application.

Feature Benefits
System Coaxial Kits Custom lengths; fully and partially terminated cable options
SDU & HPA Trays 2 & 3 MCU, fan & non-fan cooled options
System Harness Kits Custom lengths; terminated at SDU connector end

Trays

The trays are designed per the AVIATOR SP system specifications. Standard 2 MCU trays are available for the SDU-7320 and HPA-7450 LRUs; a 3 MCU try is available for the 4-Channel SDU-7330. If your installation requires forced air cooling, fan-cooled trays are available as well. Refer to the table below to determine the trays that best fit your installation or contact Amphenol CIT engineering to customize a tray to meet your needs.

Coaxial Cable Kits

Coaxial cable kits are engineered to your required length and optimized for loss and attenuation dependent upon your installation length. Various cable types and connector variations (Straight or Right Angle) are available to optimize your installation needs. The kits are designed for all antenna configurations. Just plug and play!

Please refer to the Cobham AVIATOR Data & Configurator sheets to generate your coax P/N. TNC connectors and ARINC sockets are automatically chosen based on cable type and connector configuration.

SDU Connector Harness Kits

SDU Connector harness kits are engineered to the desired lengths of each aircraft Bus location and the system specified in the installation manual.  Please refer to the Cobham AVIATOR Data & Configurator sheets to build your SDU harness. The harnesses are terminated at the SDU connector end and capped at the A/C end. Ethernet, databus, USB, and discrete wires specified in the installation manual are used to populate the connector harnesses. The kit also includes the mating backshells, as well as the loose ARINC 600 HPA connector, D38999 antenna connector, and MS3475 DLNA connector. Additional bulk wire can be purchased separately from the harnesses to accommodate any additional Ethernet and databus connections needed to complete your installation.

Product Information Resources

Cobham AVIATOR SP sheet

Cobham AVIATOR SP Kit Coaxial Worksheet

Cobham AVIATOR SP Kit SDU Worksheet


More Information

To inquire about Cobham AVIATOR SP available from Amphenol CIT, please fill out the form below, and one of our Sales Engineers will contact you.
