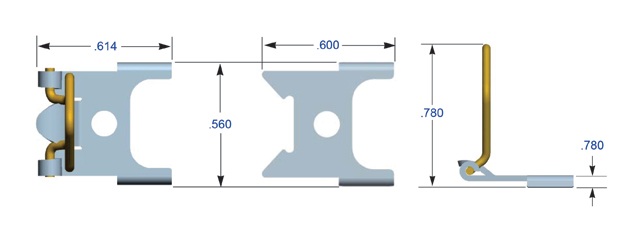

Universal Spring Latches

Compatible with MIL-STD-24308 D-Sub connectors and Compact D-Sub backshells, our Universal Spring Latches provide enhanced locking stability for in-panel and inline applications compared to industry-standard products.

Provides enhanced locking stability for in-panel and inline applications compared to industry standard products.

  • High strength stainless steel provides excellent corrosion and stress resistance
  • Accommodates conventional and moisture proof M24308 connector types
  • Extremely compact and lightweight
  • Economical
  • RoHS compliant

Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.

Ideal Applications

  • Aerospace, video and Ethernet
  • EMI and weight sensitive

Kit Contents

  • Slum - one male latch plate, one coil spring, one round head screw and one lock washer
  • Sluf - two female latch plates, two round head screws and two lock washers

Standard Material and Finish

  • Latch Plate - passivated stainless steel
  • Latch Spring - passivated stainless steel
  • Flat Head Screws - stainless steel

Optional Material

  • Surface finish can be nickel plated or anodized upon request

Product Categories

Connectors & Accessories

Product Markets

Commercial Aerospace
