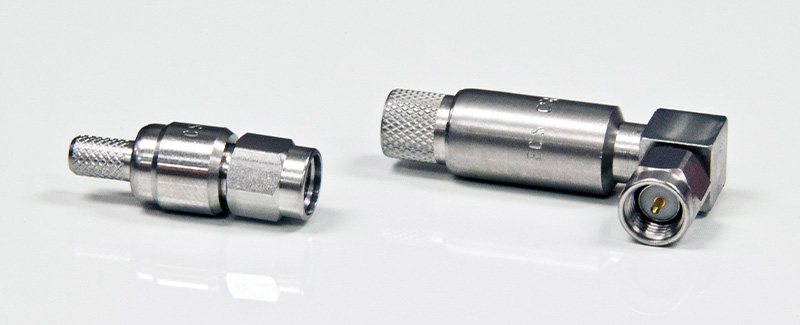

ECS SMA Connectors

RF Coaxial Cables with Corresponding Connector Type

Use the following chart to match the desired cable with the required connector.

Cable Part # SMA 90° SMA Straight
532101 CSR522 CSS522
(IGS, STEP)
432101 CSR522 CSS522
(IGS, STEP)
352001 CSR3522
(IGS, STEP)		 CSS3522
(IGS, STEP)
3C058A CSR722 CSS722
3C142B CSR722 CSS722
311901 CSR722 CSS722
421601 CSR922
(IGS, STEP)
CSRL922		 CSS922
311601 CSR922
(IGS, STEP)
CSRL922		 CSS922
311501 CSR922
(IGS, STEP)
CSRL922		 CSS922
421201 CSR122 CSS122
311201 CSR122 CSS122
310801 N/A N/A
310701 N/A N/A

Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.
