Compact D-Sub Backshells


Compact D-Sub Backshells

Amphenol CIT’s lightweight series D-Sub Backshells are designed to minimize weight and maximize internal space and EMI shielding. Our D-Sub Backshells are an ideal solution for high-end commercial and aviation cables where weight and/or EMI shielding are critical. The lightweight series D-Sub Backshells also feature a number of unique characteristics that improve the ease of assembly and overall system stability.

Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.


Key Characteristics:

  • Tapped body style
  • Accommodates conventional and moisture-proof MIL-STD-24308 D-Sub connectors
  • Designed for ease of manufacturing and rework in the field
  • High-precision manufacturing results in a minimal air gap
  • Very effective EMI shielding
  • RoHS and ELV compliant

Features:

  • Straight, 45° and 90° exit
  • 60% lighter than comparable industry standard products
  • Compact and efficient design maximizes internal space
  • Front panel mount capability
  • Slots for mounting stability

Benefits

  • Special mounting features that maximize cable strain relief strength. This subsequently prevents potential damage to individual wires and electrical contacts.
  • Readily available engineering support for shield termination methods that optimize the mechanical
    and electrical system performances.
  • Custom designs are available to suit special application requirements such as tight space limitations or bending radii.

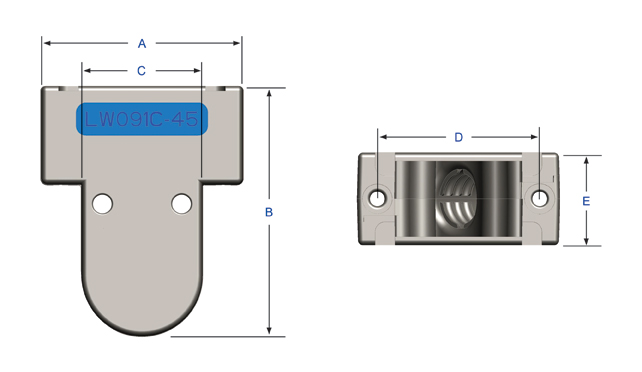

45° Exit Angle Backshell

45-degree Exit

Shell Size Dimensions Cable DIA
(Min-Max)
Weight Material P/N
A B C D E
1/E 1.23" 1.5" 0.75" 0.984" 0.58" 0.15" - 0.35" 17.5 g Die-Cast Aluminum LW091C-45
12.5 g Composite LW091P-45
2/A 1.56" 1.5" 1" 1.312" 0.58" 0.15" - 0.35" 15 g Composite LW092P-45
1.55" 1.8" 1" 1.312" 0.59" 0.2" - 0.48" 25 g Die-Cast Aluminum LW122C-45
3/B 2.1" 1.8" 1.475" 1.852" 0.58" 0.2" - 0.48" 28.5" g Die-Cast Aluminum LW123C-45
18" g Composite LW123P-45
4/C 2.75" 2" 2.155" 2.5" 0.58" 0.3" - 0.58" 35 g Die-Cast Aluminum LW154C-45
5/D 2.65" 2" 2.085" 2.406" 0.69" 0.4" - 0.65" 38 g Die-Cast Aluminum LW165C-45

Notes:

  1. The parts shown in the table above are standard items. Other strain relief diameters are available upon request.
  2. Parts are packaged unassembled.

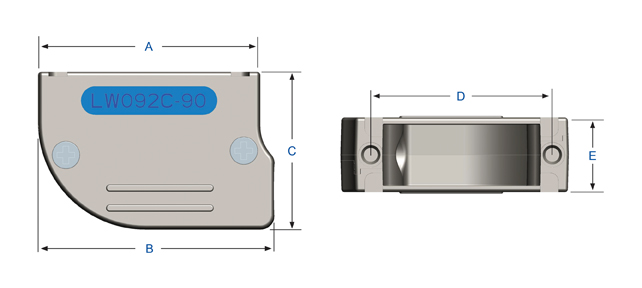

90° Exit Angle Backshell

90-degree Exit

Shell Size Dimensions Cable DIA
(Min-Max)
Weight Material P/N
A B C D E
1/E 1.23" 1.33" 0.95" 0.984" 0.52" 0.15" - 0.35" 13.5 g Composite LW091P-90
2/A 1.55" 1.65" 1.1" 1.312" 0.54" 0.15" - 0.35" 15 g Die-Cast Aluminum LW092C-90
1.55" 1.55" 1.1" 1.312" 0.56" 0.2" - 0.48" 10.5 g Composite LW122P-60
1.55" 1.55" 1.1" 1.312" 0.54" 0.2" - 0.48" 14 g Composite LW122P-90
3/B 2.1" 2.2" 1.2" 1.852" 0.56" 0.2" - 0.48" 18" g Die-Cast Aluminum LW123C-90
16" g Composite LW123P-90
4/C 2.75" 2.84" 1.5" 2.5" 0.54" 0.4" - 0.65" 32 g Die-Cast Aluminum LW164C-90
5/D 2.65" 2.75" 1.5" 2.406" 0.68" 0.4" - 0.65" 34 g Die-Cast Aluminum LW165C-90*

Notes:

  1. The parts shown in the table above are standard items unless marked with an asterisk (parts marked with an asterisk are in development). Other strain relief diameters are available upon request.
  2. Parts are packaged unassembled.

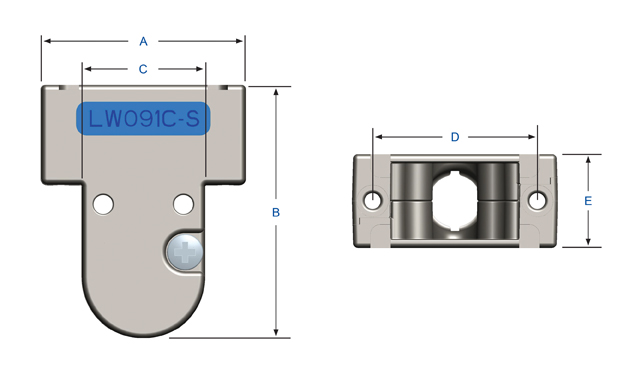

Straight Exit Angle Backshell

Straight-Exit

Shell Size Dimensions Cable DIA
(Min-Max)
Weight Material P/N
A B C D E
1/E
1.23" 1.5" 0.74" 0.984" 0.56" 0.15" - 0.35" 18 g Die-Cast Aluminum LW091C-S
13.5 g Composite LW091P-S
1.23" 1.247" 0.75" 0.984" 0.58" 0.15" - 0.35" 11 g Die-Cast Aluminum LW091C-S-C
2/A
1.56" 1.8" 1" 1.312" 0.58" 0.15" - 0.35" 25 g Die-Cast Aluminum LW092C-S
16 g Composite LW092P-S
1.55" 1.294" 1" 1.312" 0.51" 0.15" - 0.35" 13.5 g Die-Cast Aluminum LW092C-S-C
3/B
2.1" 1.8" 1.475" 1.852" 0.58" 0.2" - 0.46" 28.5 g Die-Cast Aluminum LW123C-S
18 g Composite LW123P-S
2.1" 1.279" 1.472" 1.852" 0.58" 0.4" - 0.65" 21 g Die-Cast Aluminum LW163C-S-C
4/C 2.75" 2" 2.155" 2.5" 0.58" 0.3" - 0.58" 36 g Die-Cast Aluminum LW154C-S
5/D 2.65" 2" 2.085" 2.406" 0.68" 0.4" - 0.65" 38 g Die-Cast Aluminum LW165C-S

Notes:

  1. The parts shown in the table above are standard items. Other strain relief diameters are available upon request.
  2. Parts are packaged unassembled.

Product Information Resources

 Compact D-Sub Backshells product information sheet
