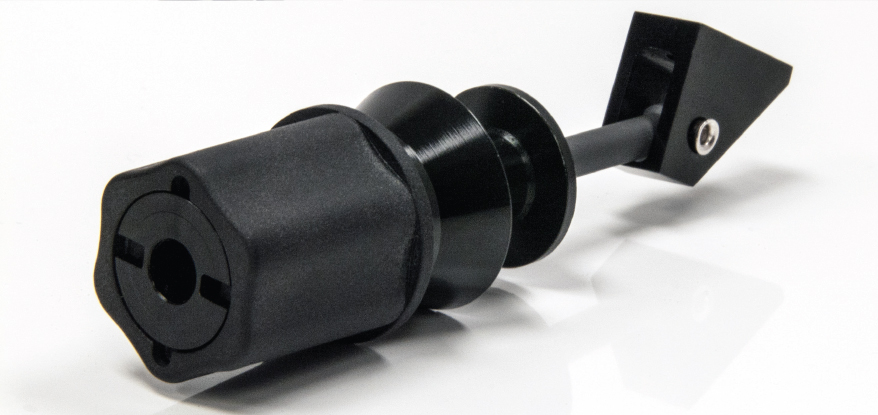

Insertion-Extraction Hold-Downs

Insertion-Extraction Hold-Downs

Amphenol CIT offers several types of installation force limiting hold-downs with extraction features to protect the blind-mate connectors interfacing your equipment and ease maintenance removal and replacement.


Performance Standards:

  • BPS-C-157
  • RTCA/DO-160G

Designed for use with equipment:

  • ARINC 404A
  • ARINC 600
  • ARINC 628
  • ARINC 704A
  • ARINC 738A-1

Weight - 41g Max


  • Composite knob
  • Aluminum cup, hinge and extractor with anodize finish
  • Aluminum shaft with anodize finish and dry film lubrication
  • RoHS Compliant
  • Fasteners - Installation via #6-32 (.138-32) UNC screws using standard tooling

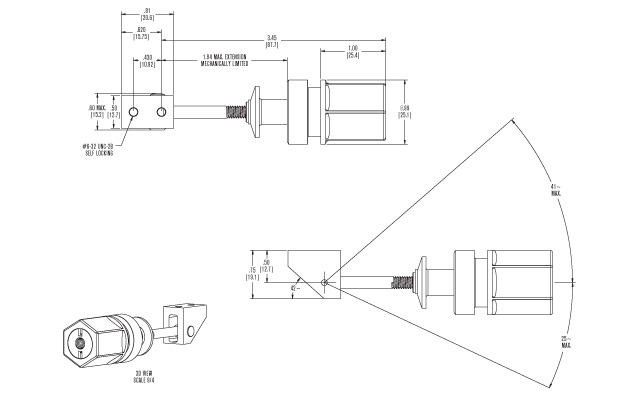

Product Construction

Product Information Resources

Insertion-Extraction Hold-Down Datasheet

More Information

To inquire about Insertion-Extraction Hold-Downs available from Amphenol CIT, please fill out the form below, and one of our Sales Engineers will contact you.
