Seamless & Seamless-T™
product details

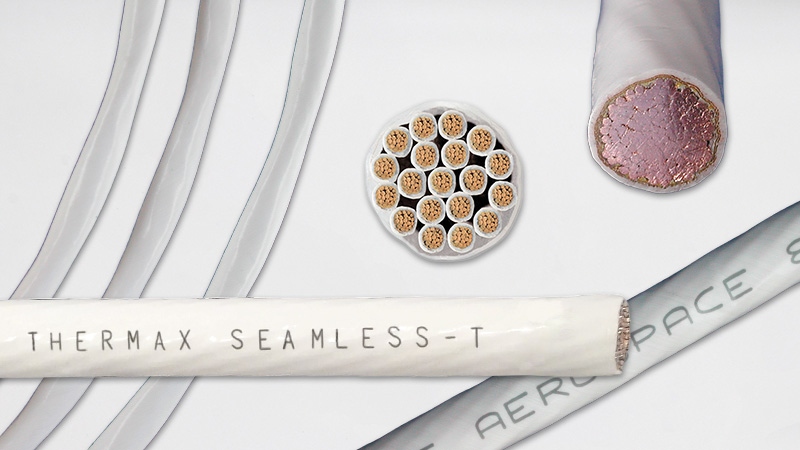

Seamless PTFE tape wrap is an insulation and cable jacket technology that offers all the advantages of a tape wrap, with the smooth appearance and characteristics of an extrusion.
specifications
- Seamless products meet all requirements for AS22759/80-/92 and NEMA WC27500
- Seamless-T™ products meet the enhanced seamless insulation and enhanced requirements of AS22759/180-/192
key features
- Weight & space savings over extruded insulation
- Superior scrape abrasion resistance
- Excellent laser markability
- Outstanding hydrolytic resistance
- High electrical arc track resistance
- Superior layer-to-layer adhesion
- Low outgassing characteristics
seamless & seamless -t products
- Designed for use in commercial & military aerospace applications
- Available in a variety of constructions & colors
- Custom designs are available by request
Our in-house integrated engineering teams are ready to take on your greatest challenges.

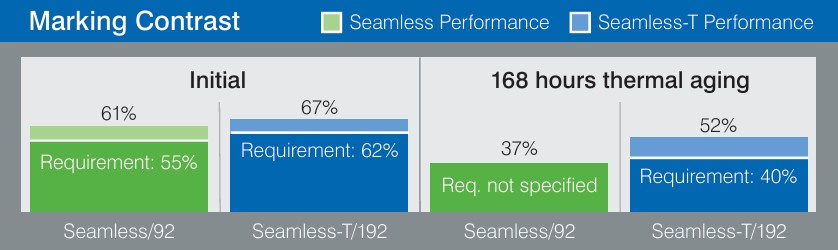

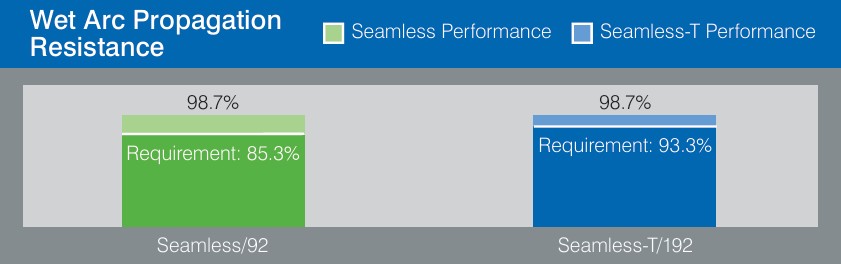

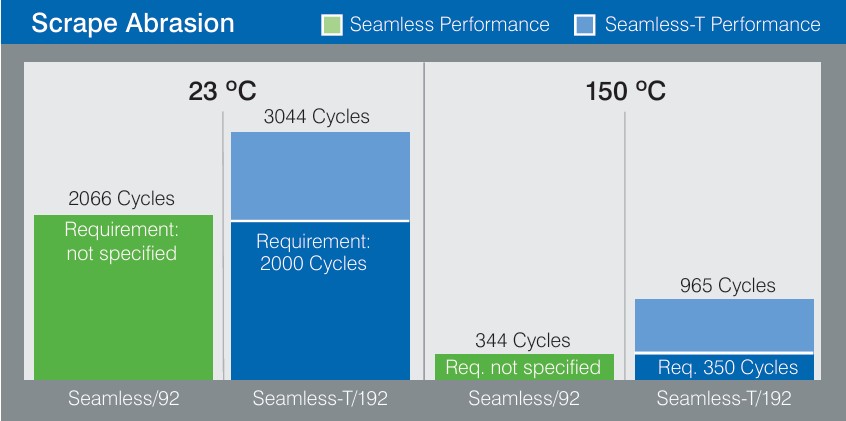

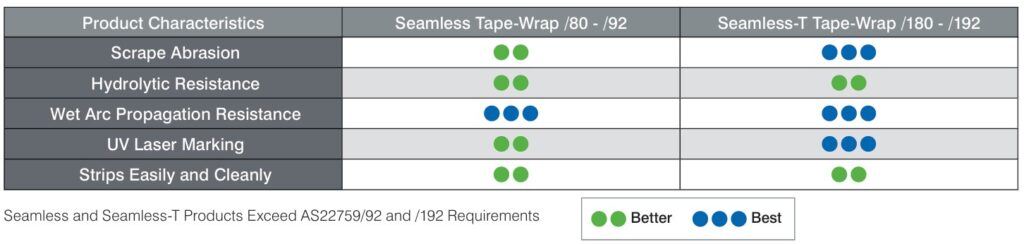

Seamless & Seamless-T Comparison Charts
Related Products
-
Seamless M22759/5-/31 Wires
M22759 (SAE AS22759) wires are high-performance, medium- and high-temperature hookup wires with extruded PTFE or ETFE, or PTFE/polyimide tape insulators, and stranded conductors.
-
Seamless M22759/80-/92 Wires
M22759 (SAE AS22759) wires are high-performance, medium- and high-temperature hookup wires with extruded PTFE or ETFE, or PTFE/polyimide tape insulators, and stranded conductors.
-
Seamless-T™ M22759/180-/192 Cables
Amphenol CIT Seamless-T™ product line meets the enhanced “seamless” insulation and enhanced requirements of AS22759/180-/192, once again raising the bar for outstanding performance.
-
MIL-DTL-27500 Cables
MIL-DTL-27500 (NEMA WC27500) cables incorporate from one to fifteen M22759, MIL-W-25038, or MIL-DTL-81381 wires, plus a single or double shield and a single or double jacket. MIL-DTL-27500 part numbering system provides for many combinations of cable construction characteristics.
