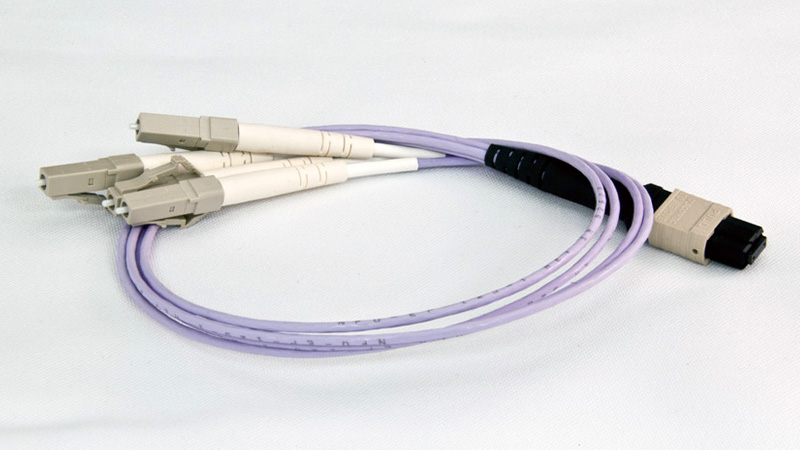

LITEflight® Fiber Optic Assemblies
Product Details
Our LITEflight® fiber optic cable assemblies are designed to perform in the harshest installation and operating environments and offer unmatched performance in temperature extremes with immunity to electromagnetic interference (EMI). They are available in a wide range of options, including:
- Fiber jumpers
- Connectorized assemblies
- Highly complex breakout assemblies
- Long-length assemblies
- Fiber harnessing on racks, trays, or other structures
We terminate all common connector and termini designs and offer all termination types, including single-mode, multimode, and plastic optical fiber in single and multiple-fiber configurations.
Assembly design and value-add engineering are available, as are environmental, mechanical, and optical qualification testing and certification, as needed.
Our in-house integrated engineering teams are ready to take on your greatest challenges.
Specifications
| Fiber Count | Fiber Type | Characteristic | Coating | Jacket |
| 001 | A OM1 (62.5/125) H 105/125 (MM) | 1 N/A | A Standard (-40 to 65 °C) | 1 Coated Fiber |
| 002 | B OM2 (50/125) I 110/125 (MM) | 2 Bend Insensitive | B Mid Temp (-65 to 125 °C) | 2 900um Acrylate Buffered |
| 003 | C OM3 (50/125) J 200/240 (MM) | 3 Polarization Maintaining | C High Temp (-65 to 150 °C) | 3 900um Fluoropolymer Buffered |
| — | D OM4 (50/125) K PM (SM) | 4 Radiation Hardened | D Extreme Temp (-65 to 260 °C) | 4 Fluoropolymer Jacketed |
| 999 | E OS1 (SM) F OS2 (SM) G 100/140 (MM) L POF (MM) M Custom/Other | 5 Custom/Other | E Custom/Other | 5 Custom/Other |
| Contact A | Contact A Polish | Contact B | Contact B Polish | Engineering Assigned | Length | Unit of Measure | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ARINC 801 | K | FC | 1 | Flat | A | ARINC 801 | K | FC | 1 | Flat | XXX | 001 | IN |
| B | Elio® | L | MTP (M) | 2 | PC | B | Elio® | L | MTP (M) | 2 | PC | 002 | FT | |
| C | M29504/4 | M | MTP (F) | 3 | SPC | C | M29504/4 | M | MTP (F) | 3 | SPC | 003 | MT | |
| D | M29504/5 | N | MT-RJ (M) | 4 | UPC | D | M29504/5 | N | MT-RJ (M) | 4 | UPC | … | MM | |
| E | M29504/14 | O | MT-RJ (F) | 5 | APC(8°) | E | M29504/14 | O | MT-RJ (F) | 5 | APC (8°) | 999 | CM | |
| F | M29504/15 | P | LX-5 | 6 | Optical Lens | F | M29504/15 | P | LX-5 | 6 | Optical Lens | KM | ||
| G | Pro-Beam® | Q | MU | 7 | Custom/Other | G | Pro-Beam® | Q | MU | 7 | Custom/Other | |||
| H | LC | R | SMA 905 | H | LC | R | SMA 905 | |||||||
| I | SC | S | D4 | I | SC | S | D4 | |||||||
| J | ST | T | Custom/Other | J | ST | T | Custom/Other | |||||||
How to Order
- Choose your cable codes from the Cable Specifications tab
- Choose your connector codes from the Connector Codes Tab
- Build your assembly PN from the Part Number guide above
- High definition video visual inspection of fiber connector interfaces at high magnification, with digital capture, complete test reporting and archiving of termination endface quality
- Multiple channel IL/RL testing at 660/850/1310/1550 nanometer wavelengths with full test results reporting
- Advanced interferometer testing for precise endface geometry control
Related Products
-

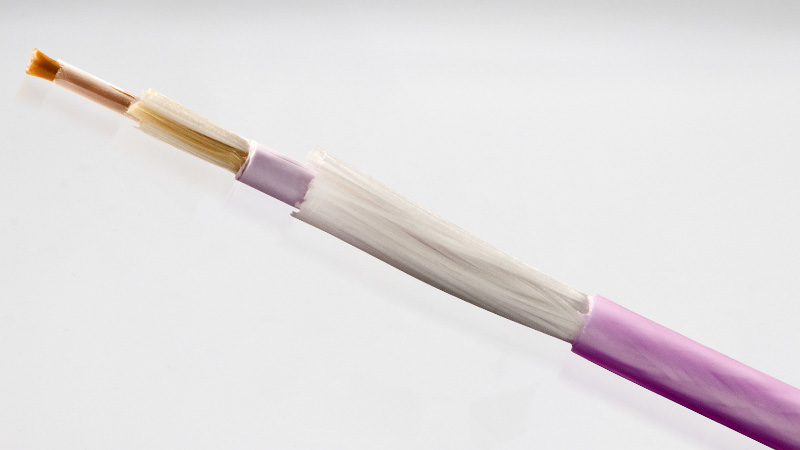

LITEflight® EP Fiber Optic Cables
Aerospace-grade fiber optic cables that provide all the performance and benefits necessary to perform in the harsh environments of aerospace and military applications with low loss, tight bend radius, improved thermal stability, and peak performance during termination and installation. Semi-loose structured and compatible with all commercially available fiber optic termini and connectors
-

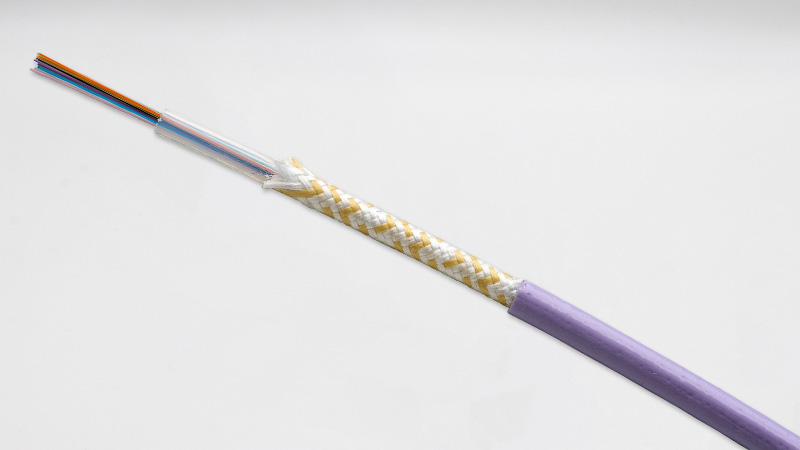

LITEflight® HD Fiber Optic Cables
A multichannel fiber cable in the smallest package. Designed for compatibility with cutting-edge fiber optic connector designs like industry-leading MPO and MPO-derivative connectors, as well as emerging multi-fiber termination connectors.
-
Data Bus, Power & Video Assemblies
Our standard and custom data bus, power, and video cable assemblies are ideal to support a wide variety of aircraft cabin management systems.
-

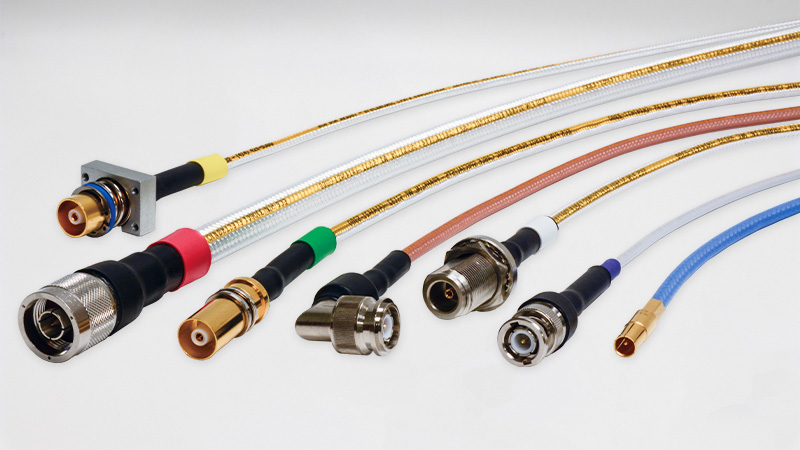

Avionics RF Assemblies
