Silicone P-Seal

Amphenol CIT offers a Silicone P-Seal which can be used in a variety of applications. This flexible P-seal is great for filling in various sizes of gaps between components/structures, such as trays and blanking plates. The adaptable design allows for creating a tight seal between the surface it is assembled onto, or the others surfaces it is in contact with. A variety of lengths are available per request.

Applications

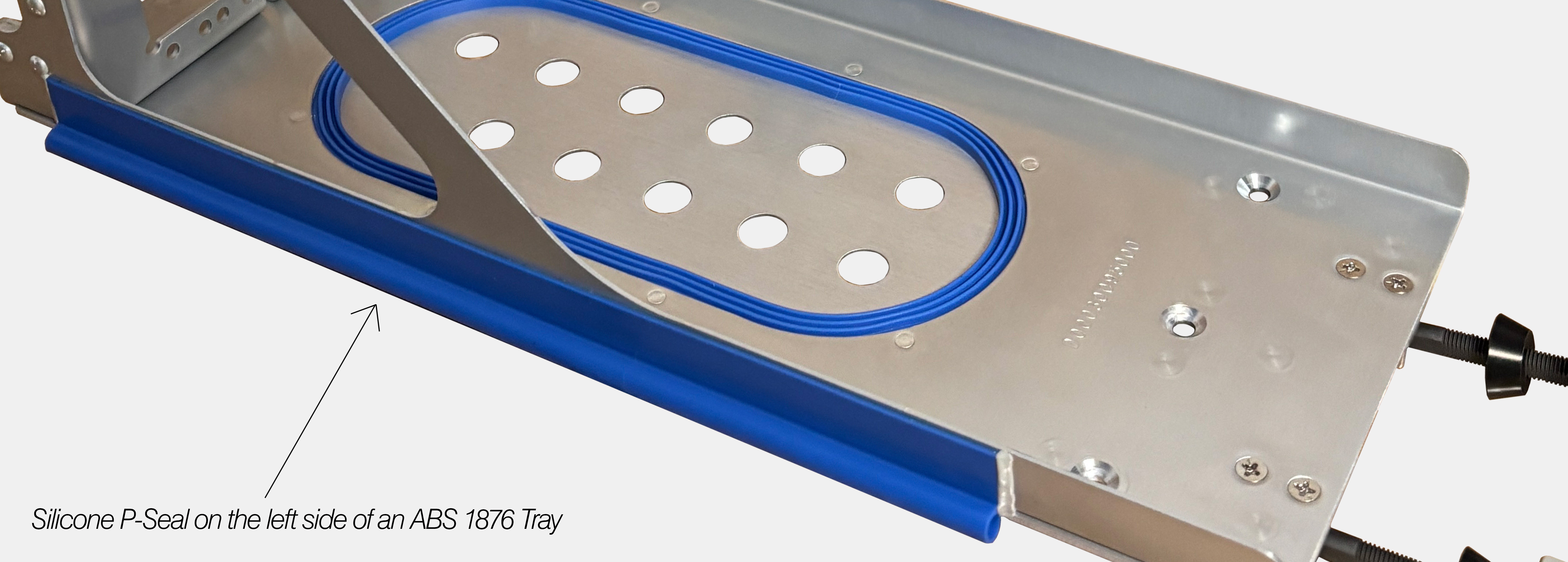

• Tray Edges
• Door Edges
• Rack Edges
• General Sealing Applications

Key Features

• Material: Durable Silicone
• Color: Blue
• Properties:
  • Hardness (shore A): 65 ±5
  • Tensile Strength (PSI): 1500
  • Elongation (Min %): 500
  • Tear Strength (PPI): 120
  • Compression Set (%) (22Hrs/175C): 35
  • Temperature Range (°F): -80 to +450
• Fire Properties:
  • 14 CFR 25.853(a) Appendix F, Part I (b)(5), Horizontal Burn, Flammability
  • 14 CFR 25.853(d) Appendix F, Part V, Smoke Density
  • ABD0031, AITM 3.0005, Toxicity

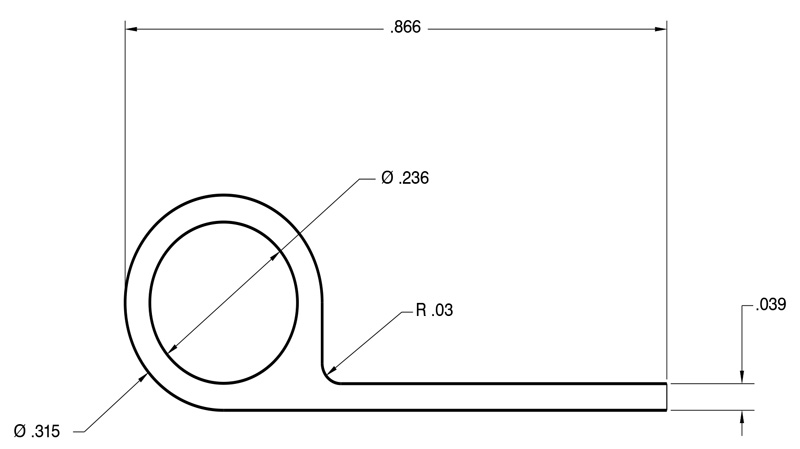

Drawing & Dimensions

Below are the standard dimensions for the P-Seal. ACIT recommends having a gap no bigger than 0.25" in between components (i.e., in between trays) so that the outer diameter of the P-Seal can compress and form an airtight gap. The P-Seal can be cut to a desired length with a maximum length of 4 ft.

*All measurements are in inches.
