Specialty Connectors & Adapters
Product Details
Types include blind-mate antenna connectors, tee and bulkhead adapters, and other parts to address unique installation challenges using a variety of standard RF interfaces.
See the table below for compatibility with our ECS avionics RF cables.
Our in-house integrated engineering teams are ready to take on your greatest challenges.
Types
Suggested Applications:
- Type N, TND & BNC
- Interface compatible with MIL-STD-384A
- Frequency range: DC to 11 GHz
- Temperature rating: -65 to 150 °C
Key Benefits:
- Saves space for new & existing antenna installations

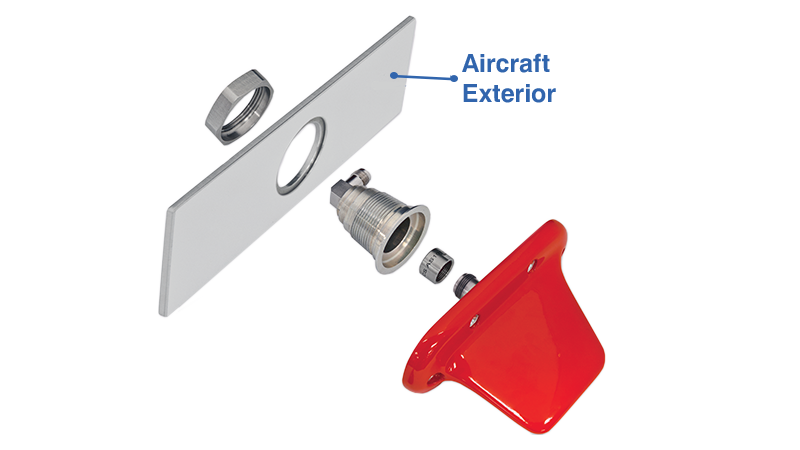

- Convert antennas into “plug & play” blind mate antennas
- No need to gain access beneath floor boards or above
- ceiling panels
- Eliminates service loops
- Reduces coax cable damage & mechanical stress
