Gigabit-Plus™ Ethernet Cables

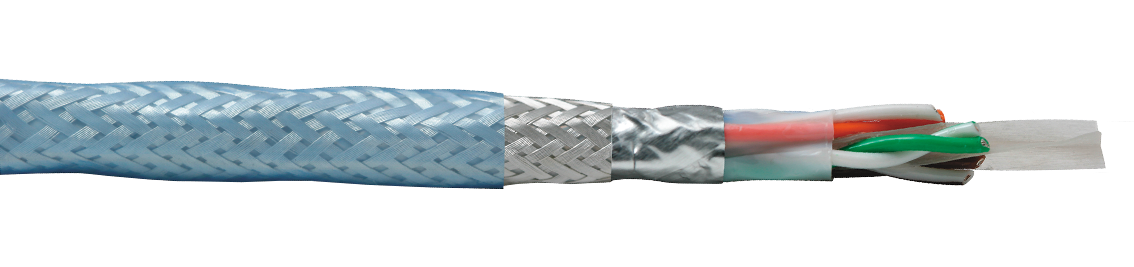

Gigabit-Plus ethernet cable

Gigabit-Plus™ Ethernet cables provide exceptional 1000 Base-T performance up to 250 MHz at distances of up to 100 m. These highly durable cables are ideal for a wide variety of demanding applications and are smaller in size and lighter in weight than comparable cables.

Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.

Key Features

  • Innovative X-Web spline reduces crosstalk and eliminates the need for individual pair shielding
  • More durable, smaller in overall size and lighter in weight than comparable cables
  • Applications include Ethernet backbones, avionics, in-flight entertainments systems, cabin management systems and ground vehicle bus
  • Meet the flammability requirements of FAR 25.853 and the smoke and toxicity requirements of Boeing and Airbus ABD0031

Product Construction

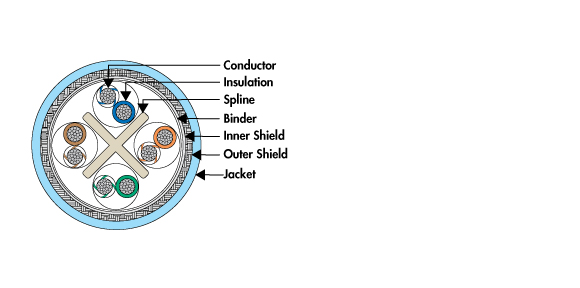

Gigabit Plus Ethernet Cable Cutaway

Gigabit-Plus™ MX10G-24MX10G-24-ALWMX10G-26
Impedance100 Ω100 Ω100 Ω
DC Resistance @ 100 ft2.76 Ω2.76 Ω4.38 Ω
Velocity of Propagation70%70%70%
Attenuation @ 100 m@ 100 MHz24 dB24 dB29 dB
@ 250 MHz40 dB40 dB40 dB
@ 500 MHzN/AN/AN/A
Weight lb/1000 ft (kg/1000 m)50 (74)45 (67) 35 (52)
Size in (mm)0.270 (6.86)0.270 (6.86)0.220 (5.59)
Min. Bend Radius in (mm)2 (50.8)2 (50.8)1.75 (44.45)
Operating Temp**-55 to 150 °C-55 to 150 °C-55 to 150 °C
RoHS Compliant
Meets FAR 25.853 Flammability Requirements
Meets Boeing/ Airbus Smoke & Toxicity Requirements

**Available at -65 ºC. Contact us for details.

MX10G-24Check Inventory

Product Information Resources

High-Speed Digital Data Cables Datasheet

MX10G-24-ALW Lightweight High-Speed Digital Data Cables Datasheet
