Thermazone™ IIIK & IIIG (MIL-DTL-25038/3)

Datasheet
jump to specs

Product Details

These wires are designed for critical circuit applications that require operation in extremely harsh environments, under vibration, and with direct flame exposure.

  • Designed to operate continuously at 260 °C
  • Designed to operate for a minimum of 15 minutes at up to 2000 °F (1093 °C), including in a direct flame
  • Firezone qualification must pass BSS 7324 & M25038 Shake & Bake Test

applications

  • MIL-SPEC
  • Aircraft engine
  • Critical circuit applications
  • Harsh environment
  • Direct flame

Our in-house integrated engineering teams are ready to take on your greatest challenges.

Contact an Expert
Call 1-800-458-9960

Specifications

shake & bake test

Firezone

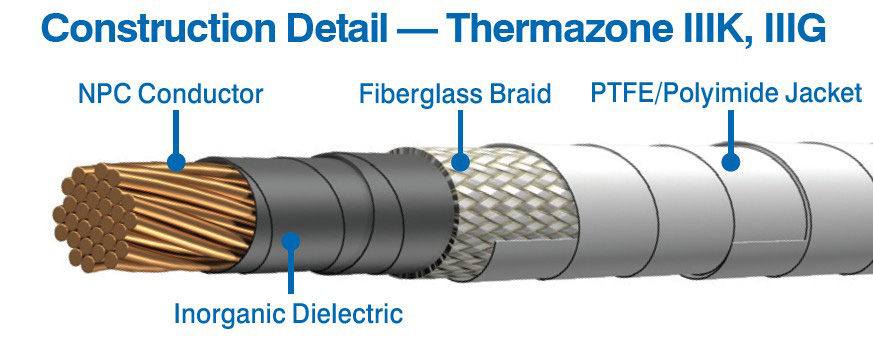

Construction

Performance

  • Wire must withstand a flame temperature of 2,000° ± 50° F for 15 minutes
  • After the flame has been stabilized, the wire is vibrated 30 times per second, with the rack having a maximum total excursion (overall movement) of approximately .06 inches (1.52 mm)
  • After 15 minutes, the lowest insulation resistance is measured
  • No insulation can flake or fall off during the flame exposure
RequirementsResults
MIL-W-2503850 Ω10k Ω

Conductor: 12–18 AWG: 27% nickel-plated copper 20–22 / AWG: 27% nickel-plated high-strength copper alloy

Inner Insulation: Inorganic dielectric

Outer Insulation:
Thermazone IIIK: PTFE/polyimide tape fluid barier Thermazone IIIG: PTFE/-coated fiberglass fluid barrier

Jacket: Fused high-performance PTFE tape (also available with Seamless Wrap PTFE tape)

Identification: Surface printed per MIL-DTL-25038/3

Colors: Color coded to MIL-STD-104

Voltage Rating: 600 V

Temperature Rating: -65 to 260 °C

Voltage Rating600V
Temperature Rating-55 to 260 °C
AWG22-12
