Large-Gauge Sealed Splices

Reliable, Easy-to-Install Connections

Product Details

Amphenol CIT Large Gauge Aluminum Splices deliver fast installation, flexible orientation, and dependable performance for aluminum and copper-to-aluminum applications. Available in standard and custom configurations, they’re designed to help simplify assembly in demanding environments.

key benefits

Fast installation with a single crimp on each barrel
No burrs to remove in secondary operations
Crimps can be applied at any rotational angle
Independent barrel orientation supports easier routing
Standard options for aluminum butt splicing & copper-to-aluminum transitions
Custom solutions available from #10 AWG to 4/0 AWG
Material options include tin, nickel-plated aluminum & nickel-plated copper
Designed for applications up to 260 °C

types available

Butt splices for aluminum-to-aluminum connections
Transition splices for aluminum-to-copper connections

Our in-house integrated engineering teams are ready to take on your greatest challenges.

Contact an Expert

Call 1-800-458-9960

Specifications

features & benefits

butt splices

transition splices

transition splice dies

Feature	Benefit
Barrels seal on cable insulation	Provides improved corrosion resistance over unsealed terminal lugs
Barrel may be crimped at any rotational angle	Installation & inspection is simplified as there are no rotational indicators that the crimps must aligned with
Crimps may be made at any rotational angle to one another	Facilitates quick & easy installation even when the cables are routed against walls
Aluminum connector bodies	65% weight savings (on average) versus copper
Uses Industry-standard 22- & 33-ton crimp heads	Efficient installation while minimizing conversion costs
Efficient crimping process	Modified hex crimp design produces no burrs, eliminating the cost of secondary operations, minimizing plating damage & providing superior corrosion resistance
Crimping design	Produces installations where cables are nearly straight, facilitating harness design and installation
Patented integral oxide breaker	Improves conductivity while eliminating the need for messy anti-oxidant grease

For Aluminum-to-Aluminum Connections

• For splicing ACIT TLA-175 aluminum cables
• Lightweight tin-plated aluminum construction for applications up to 150 °C

Crimp Die P/N	Crimp Indicator Style	Splice P/N	Aluminum Wire Size (AWG)	Crimp Area Gauge P/N*	Indicator Area Gauge P/N*
999-63006-200	Dot	640-43071-01	2	999-63006-79	999-63006-89
999-63007-200	Dot	640-43072-01	1/0	999-63007-79	999-63007-89
999-63008-200	Dot	640-43069-01	2/0	999-63008-79	999-63008-89
999-63010-100	Plus	640-43070-01	4/0	999-63010-79	999-63010-89

* GO/NO‐GO Gauges (999 part numbers ending in ‐079 & ‐089) may be purchased from Daniels Manufacturing (DMC). Contact information is: Daniels Manufacturing Corporation, 526 Thorpe Road, Orlando, FL 32824‐8133 USA. Telephone: +1‐407‐855‐6161, Email: dmc@dmctools.com“

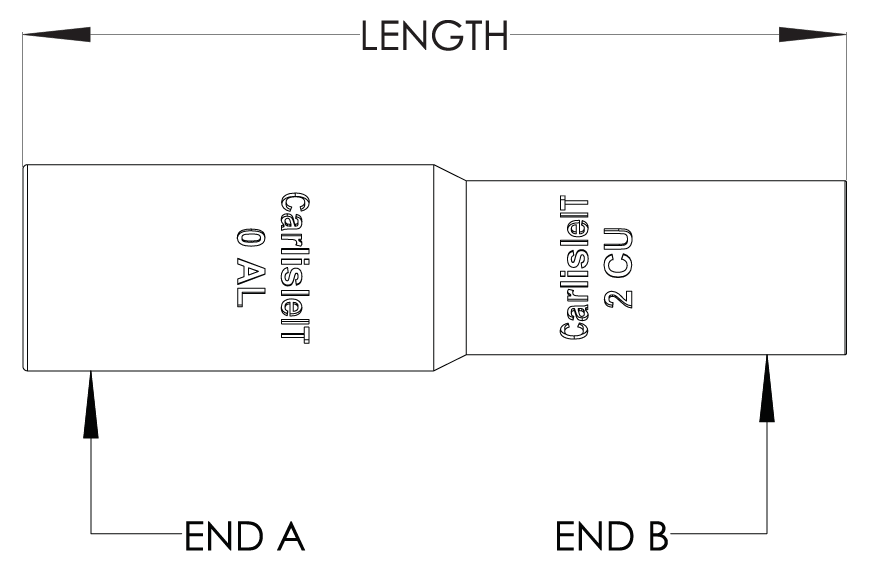

For Aluminum-to-Copper Connections

• For splicing aluminum cables to copper cables
• Lightweight tin-plated aluminum construction for applications up to 150 ⁰C

Crimp Die P/N	END A: Aluminum Wire Size (AWG)	Crimp Die P/N	END B: Copper Wire Size (AWG)	Crimp Die P/N	Length (in) / Max Weight (g)
640-43083-01*	1/0	999-63007-200	2	999-63006-200	2.71 / 21.9
640-43077-01**	3/0	999-63012-100	1/0	999-63007-200	3.08 / 35.6

* For use with TLA-175 aluminum cable and TGS-260 copper cable
** For use with 1/0 AWG AD, VY or AM aluminum cable and 2 AWG DR / UST16 & DR / UST17 copper cable

P/N	END A: Aluminum Wire Size (AWG)	Crimp Die P/N	Crimp Indicator Style*	Crimp Area Gauge P/N*	Indicator Area Gauge P/N*	END B: Copper Wire Size (AWG)	Crimp Die P/N	Crimp Indicator Style	Crimp Area Gauge P/N*	Indicator Area Gauge P/N*
640-43083-01	1/0	999-63007-200	Dot	999-63007-79	999-63007-79	2	999-63006-200	Dot	999-63006-79	999-63006-89
640-43077-01	3/0	999-63012-100	Plus	999-63012-79	999-63012-79	1/0	999-63007-200	Dot	999-63007-79	999-63007-89
