ABS1876 Trays
Product Details
Our ABS1876 family of trays, developed for the Airbus A350, can also be used on all Airbus A3xx aircraft. Constructed from a lightweight aluminum alloy, these trays combine rugged durability with reduced mass to optimize aerospace installations.
key features
- Meet ARINC 600 & ABS1773 requirements specific to Airbus A3xx
- Integrated Silicone P-Seal to speed installation on cooled equipment shelves
- 20% lighter than ABS1699 trays
applications
- ABS1876
- ARINC 600 standards
- CFR Title 14, Part 25, 23 & 21
- RTCA/DO-160
Our in-house integrated engineering teams are ready to take on your greatest challenges.
Features & Specifications
- 20% Lighter than ABS1699 trays
- Integrated Silicone P-Seal to speed installation on cooled equipment shelves
- Cooling holes standardized to accept NSA939511-03 plugs for easy airflow adjustments
- Clear Chem Film per MIL-DTL-5541, Type II, Class 3
- Advanced thumbscrew hold-downs, which are designed to meet the performance criteria of the ASNA2168 & ABS1773 standards
- Materials that meet the flammability, optical smoke density & toxic gas generation requirements of ABD0031
- RoHS compliant
- 24-hour AOG support
- ABS1876
- ARINC 600
- CFR Title 14 Part 25, 23 & 21
- RTCA/DO-160
Standard ABS1876 configurations shown. Custom configurations available.

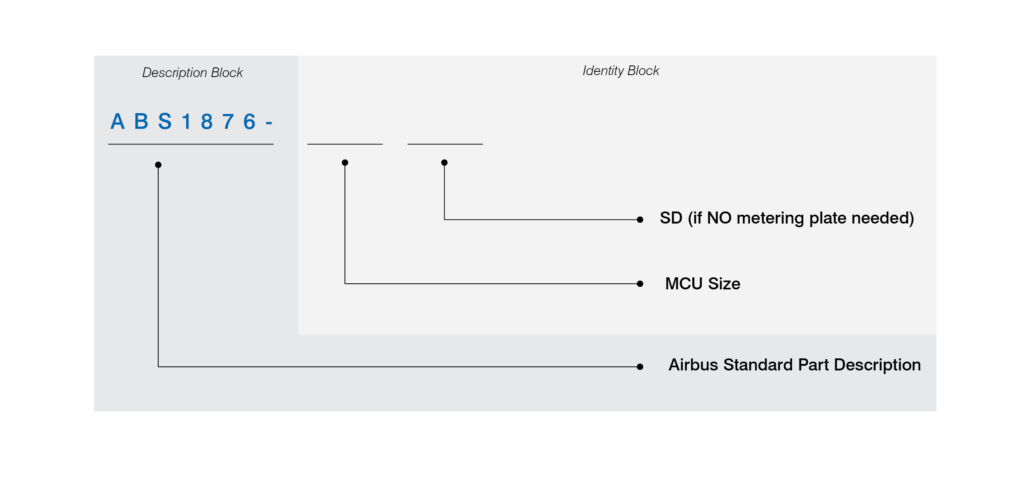

| MCU Size | ABS1876 Standard P/N | ACIT P/N |
| 2MCU | ABS1876-02 | 200-35085-101 |
| 2MCU | ABS1876-02SD* | 200-126610-101 |
| 3MCU | ABS1876-03 | 200-35086-101 |
| 3MCU | ABS1876-03SD* | 200-126823-101 |
| 4MCU | ABS1876-04 | 200-35048-103 |
| 5MCU | ABS1876-05 | 200-35055-101 |
| 6MCU | ABS1876-06 | 200-35062-101 |
| 8MCU | ABS1876-08 | 200-137795-101 |
| 8MCU | ABS1876-08SD* | 200-127287-101 |
| 9MCU | ABS1876-09 | 200-35077-101 |
