Straight Exit Angle Backshells
Product Details
ACIT Straight Exit Angle Backshells are extremely compact and lightweight, offering a straight cable exit.
key features
- Straight cable exit
- Extremely compact and lightweight
- Designed for ease of manufacturing and rework in the field
- Body tapped style
- High precision with a minimal air gap
- RoHS compliant
applications
- Aerospace video & Ethernet
- EMI protection
- Weight sensitive
Our in-house integrated engineering teams are ready to take on your greatest challenges.
Specifications

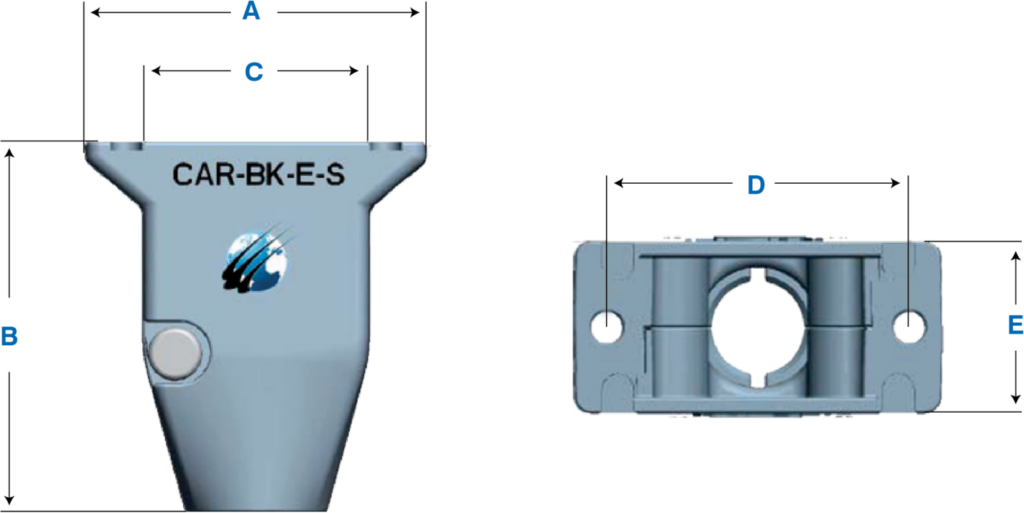

| Shell Size | Dimensions in Inches | Cable DIA (Min-Max) in Inches | Amphenol CIT P/N | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||
| 1/E | 1.230 | 1.300 | 0.800 | 0.984 | 0.560 | 0.10-0.30 | CAR-BK-E-S |
| Kit Contents | 2 shell halves 2 screws (MS51957) |
| Standard Material & Finish | Shell: Aluminum alloy with electroless nickel plating 4-40 Pan Head Screws: Stainless Steel |
| Optional Material & Finish | Zinc alloy or metalized plastic Additional plating upon customer request |
